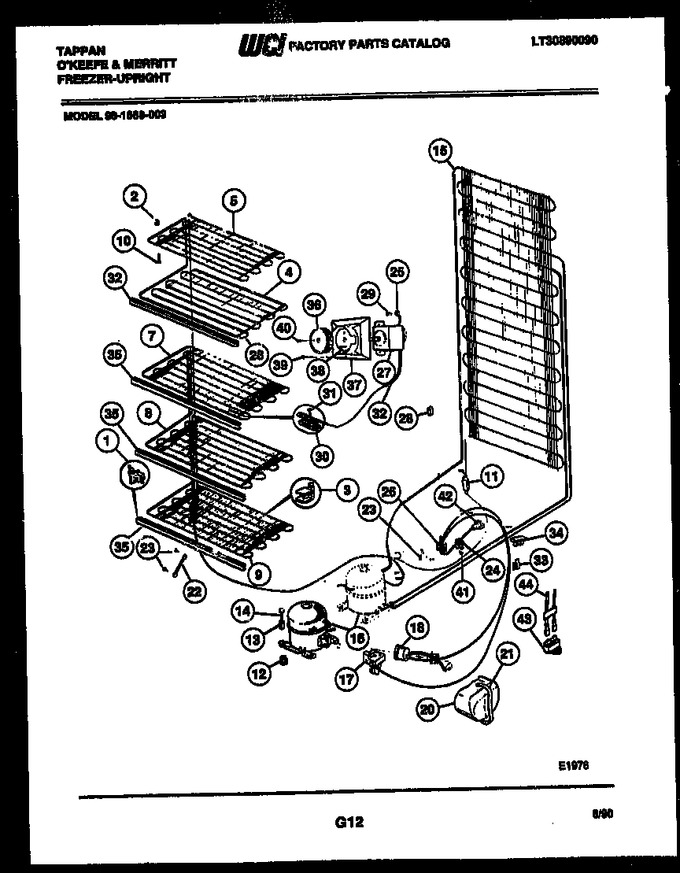

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F300592 | Support-front Lh |
|
- | |||||
| 2 | F81445 | Spcr-top Grid Front |
|
- | |||||
| 3 | F117447 | Support Rear |
|
- | |||||
| 4 | F125249 | Heat Exchanger |
|
- | |||||
| 5 | F121179 | Top Grid |
|
- | |||||
| 6 | F129785 | First Shelf |
|
- | |||||
| 7 | F129807 | Second Shelf |
|
- | |||||
| 9 | F129786 | Bottom Shelf |
|
- | |||||
| 10 | F126260 | Screw-top Grid |
|
- | |||||
| 11 | 5303305677 | Drier (Replaces: 5300152474) |
|
Immediately | $ 31.67 | ||||
| 12 | F59555 | Grommet (4) |
|
- | |||||
| 13 | F59556 | Sleeve (3) |
|
- | |||||
| 14 | F59211 | Screw (3) |
|
- | |||||
| 15 | F123788 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 16 | 5303916411 | Compressor With Electricals-service |
|
- | |||||
| 17 | 5303017753 | Relay |
|
- | |||||
| 18 | 5308037789 | Overload |
|
- | |||||
| 20 | F123392 | Cover Terminal |
|
- | |||||
| 21 | F117108 | Clamp Cover |
|
- | |||||
| 22 | F95424 | Ground Wire |
|
- | |||||
| 23 | F81693 | Screw |
|
- | |||||
| 24 | F116027 | Clamp, Service Cord |
|
- | |||||
| 25 | F125347 | Ground Wire |
|
- | |||||
| 26 | F128543 | Wiring Harness |
|
- | |||||
| 27 | F126974 | Cold-control |
|
- | |||||
| 28 | F112321 | Retainer-harness |
|
- | |||||
| 29 | F99483 | Screw-ground Wire |
|
- | |||||
| 30 | F96850 | Clamp-capillary |
|
- | |||||
| 31 | F52943 | Screw Capillary Clamp |
|
- | |||||
| 32 | F129728 | Sleeve-control Cap Tube |
|
- | |||||
| 33 | F117388 | Clip Wire |
|
- | |||||
| 34 | F111846 | Cord Clip |
|
- | |||||
| 35 | F300385 | Front Shelf |
|
- | |||||
| 36 | F127717 | Knob-control |
|
- | |||||
| 37 | F128633 | Housing-control |
|
- | |||||
| 38 | F55160 | Screw-control To Cover |
|
- | |||||
| 39 | F50149 | Screw-cover To Liner |
|
- | |||||
| 40 | F110410 | Screw-knob To Control |
|
- | |||||
| 41 | F54679 | Screw |
|
- | |||||
| 42 | Q000086065 | Power Cord |
|
- | |||||
| 43 | 5303916391 | Run Capacitor |
|
- | |||||
| 44 | 5303091425 | Harness Capacitor |
|
- | |||||
| *16145 | F128680 | Cover-light (plastic) |
|
- | |||||
| 1A | F300590 | Support-front Rh |
|
- | |||||
| 2A | F56640 | Spcr-top Grid Rear |
|
- | |||||
| 37A | F128680 | Cover-light Shield (non-illustrated) |
|
- |
