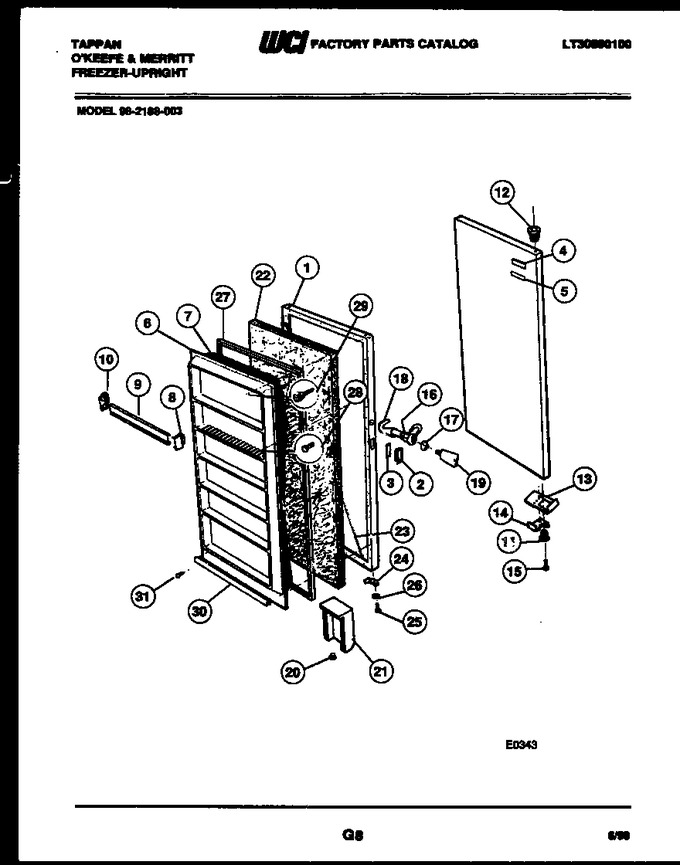

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F126594-S		Panel-door (white)		Appelez-nous	-
2	F129863		Handle Recessed		Appelez-nous	-
3	F112639		Gasket, Handle		Appelez-nous	-
4	3204179		Nameplate		Appelez-nous	-
5	3204180		Insert Nameplate		Appelez-nous	-
6	F124704-93		Panel-blue		Appelez-nous	-
7	F116171-50		Insulation		Appelez-nous	-
8	3204184		Shelf Front Narrow (5)		Appelez-nous	-
9	F124976		End Cap-rh (6)		Appelez-nous	-
10	F124978		End Cap-lh (6)		Appelez-nous	-
11	5303210403		Bearing, Bottom		Appelez-nous	-
12	F84893		Bearing, Top		Appelez-nous	-
13	F91170		Reinforcement, Door Stop		Appelez-nous	-
14	F124623		Stop-door		Appelez-nous	-
15	F121387		Screw, Door Stop (2)		Appelez-nous	-
16	G190358		Lock-complete		Appelez-nous	-
17	F114366		Washer-lock		Appelez-nous	-
18	F124455		Lock Hook		Appelez-nous	-
19	08037402		Key Lock		Appelez-nous	-
20	F117926		Valve Breather		Appelez-nous	-
21	F128421		Duct		Appelez-nous	-
22	F116277		Insulation Door		Appelez-nous	-
23	F129670		Wire		Appelez-nous	-
24	F57880		Bracket		Appelez-nous	-
25	F57906		Screw Bracket		Appelez-nous	-
26	F119827		Washer-bracket		Appelez-nous	-
27	3206261		Gasket-door (white)				$ 254.52
28	3161215		Screw-panel (26)		Appelez-nous	-
29	08009384		Screw Panel (24)		Appelez-nous	-
30	F99439		Gasket		Appelez-nous	-
31	F300792		Rivet-gasket (5)		Appelez-nous	-
