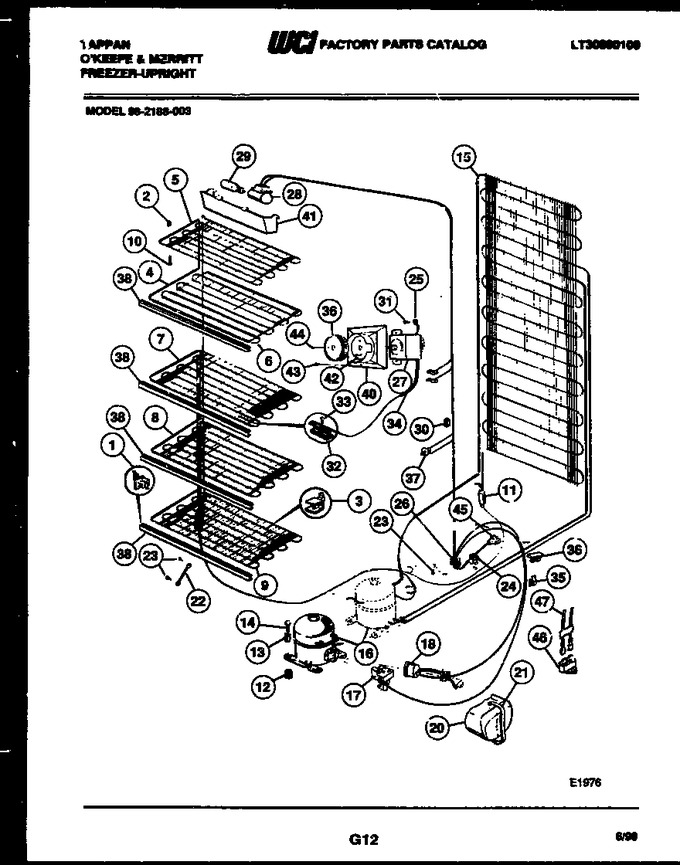

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F300592 | Support-front Lh (4) |
|
- | |||||
| 2 | F81445 | Spacer Front (2) |
|
- | |||||
| 3 | F117447 | Support Rear (6) |
|
- | |||||
| 4 | F125197 | Heat Exchanger |
|
- | |||||
| 5 | F129768 | Top Grid |
|
- | |||||
| 6 | F300036 | First Shelf |
|
- | |||||
| 7 | F125184 | Second Shelf |
|
- | |||||
| 8 | F129769 | Third Shelf |
|
- | |||||
| 9 | F300037 | Bottom Shelf |
|
- | |||||
| 10 | F126260 | Screw-top Grid (3) |
|
- | |||||
| 11 | G152474 | Drier |
|
- | |||||
| 12 | F59555 | Grommet (4) |
|
- | |||||
| 13 | F59556 | Sleeve (3) |
|
- | |||||
| 14 | F59211 | Screw (3) |
|
- | |||||
| 15 | F83897 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 16 | 5303916411 | Compressor |
|
- | |||||
| 17 | 5303017753 | Relay |
|
- | |||||
| 18 | 5308037789 | Overload |
|
- | |||||
| 20 | F123392 | Cover Terminal |
|
- | |||||
| 21 | F117108 | Clamp Cover |
|
- | |||||
| 22 | F95424 | Ground Wire |
|
- | |||||
| 23 | F81693 | Screw (2) |
|
- | |||||
| 24 | F116027 | Clamp, Service Cord |
|
- | |||||
| 25 | F125347 | Ground Wire |
|
- | |||||
| 26 | 08011943 | Wiring Harness |
|
- | |||||
| 27 | F126974 | Cold-control |
|
- | |||||
| 28 | F115515 | Light Socket |
|
- | |||||
| 29 | F92472 | Light Bulb |
|
- | |||||
| 30 | F112321 | Retainer-harness (3) |
|
- | |||||
| 31 | F99483 | Screw-ground Wire |
|
- | |||||
| 32 | F96850 | Clamp-capillary |
|
- | |||||
| 33 | F52943 | Screw Capillary Clamp |
|
- | |||||
| 34 | F129728 | Sleeve-control Cap Tube |
|
- | |||||
| 35 | F117388 | Clip Wire |
|
- | |||||
| 36 | F111846 | Cord Clip |
|
- | |||||
| 37 | F330589 | Light Switch |
|
- | |||||
| 38 | F300386 | Front Shelf (4) |
|
- | |||||
| 39 | F127717 | Knob, Cold Control |
|
- | |||||
| 40 | F128633 | Housing-cold Control |
|
- | |||||
| 41 | 3204185 | Light- Shield |
|
- | |||||
| 42 | F55160 | Screw-control To Cover |
|
- | |||||
| 43 | F50149 | Screw-cover To Liner |
|
- | |||||
| 44 | F110410 | Screw-knob To Control |
|
- | |||||
| 45 | Q000086065 | Power Cord |
|
- | |||||
| 46 | 5303916391 | Capacitor-run |
|
- | |||||
| 47 | 5303091425 | Harness Capacitor |
|
- | |||||
| 1A | F300590 | Support-front Rh (4) |
|
- | |||||
| 2A | F56640 | Spacer, Rear |
|
- |
