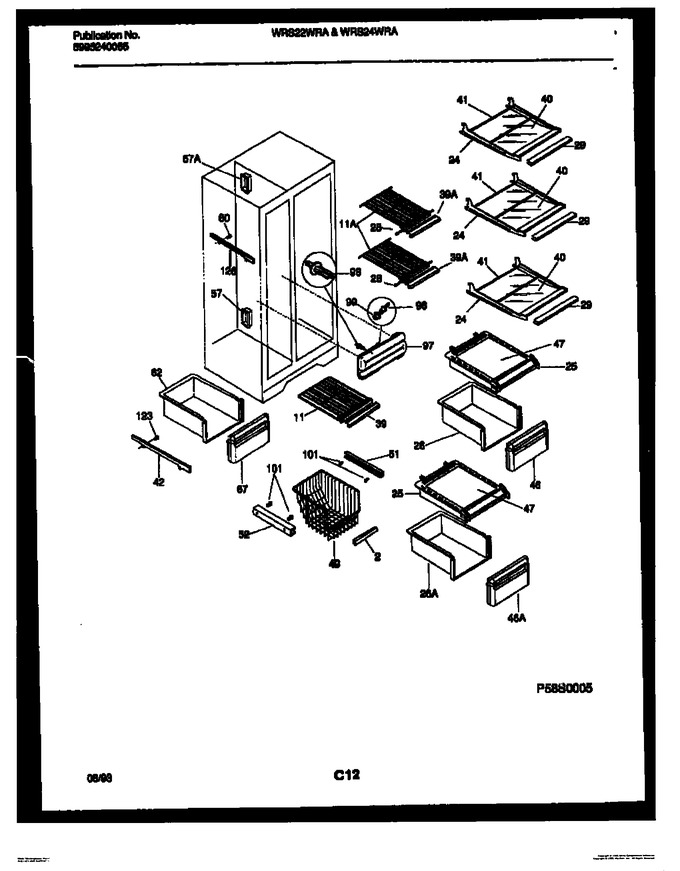

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303289382 | Trim-basket |
|
- | |||||
| 11 | 5303296574 | Shelf-freezer, Sliding Wire |
|
- | |||||
| 24 | 215069004 | Frame-refr Shelf, Cantilever, (3) |
|
- | |||||
| 25 | 5303289587 | Cover-storage Pan, Upper & Lower, (2) |
|
- | |||||
| 26 | 5303289500 | Pan-storage,upper |
|
$ 174.74 | |||||
| 28 | 08013638 | Cap-protector |
|
- | |||||
| 29 | 5303297081 | Trim-refr Shelf, (3) |
|
- | |||||
| 39 | 5303297079 | Trim-frzr Shelf |
|
- | |||||
| 40 | 5303300043 | Glass-shelf, (3) |
|
- | |||||
| 41 | 5303289388 | Trim-refr Shelf, Snap-on, Rear, (3) |
|
- | |||||
| 42 | 215002301 | Hanger-pan / Tray, Lh |
|
$ 65.82 | |||||
| 46 | 215042017 | Front-storage Pan, Upper |
|
- | |||||
| 47 | 5303297076 | Insert-pan Cover, Glass, Clear/white Dot |
|
- | |||||
| 49 | 5303296573 | Basket-sliding |
|
- | |||||
| 51 | 5303296575 | Hanger-basket, Rh |
|
$ 49.78 | |||||
| 52 | 215162502 | Hanger-basket, Lh, W/spring |
|
$ 101.35 | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 62 | 5303289517 | Tray - Deli |
|
$ 133.19 | |||||
| 67 | 5303297121 | Front-deli Tray |
|
- | |||||
| 96 | 215192600 | Support - Water Tank |
|
$ 10.71 | |||||
| 97 | 5303918258 | Water Tank Assy, Includes Tank, Grommets, Connectors (Replaces: 215230300) |
|
$ 121.63 | |||||
| 98 | 5308015614 | Connector - Tube |
|
$ 34.57 | |||||
| 99 | 5300186057 | Grommet-tank |
|
$ 28.98 | |||||
| 101 | 5308007097 | Screw, Cr Truss Head, 8-15(a) X 3/4 |
|
- | |||||
| 123 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| 126 | 215205400 | Rail-auger Bucket,lh |
|
$ 64.00 | |||||
| *77762 | 215339900 | Clip, Cantilevr Shlf |
|
$ 5.83 | |||||
| 11A | 5303296576 | Shelf-freezer, Fixed Wire ,(2) |
|
- | |||||
| 126A | 215205200 | Rail-auger Bucket, Rh (non-illustrated) |
|
- | |||||
| 25A | 5303289586 | Trim-storage Pan Cvr (non-illustrated) |
|
- | |||||
| 26A | 5303289501 | Pan-storage,lower |
|
$ 164.85 | |||||
| 29A | 5303209742 | Retainer-glass (non-illustrated) |
|
- | |||||
| 39A | 5303297080 | Trim-frzr Shelf |
|
- | |||||
| 41A | 5303211351 | Lock-shelf Trim, Rear (non-illustrated) |
|
- | |||||
| 42A | 215002401 | Hanger-pan/tray,rh (non-illustrated) |
|
$ 85.84 | |||||
| 46A | 215042016 | Front-storage Pan, Lower |
|
- | |||||
| 47A | 5303289387 | Insert-pan Cover, Glass, Clear (non-illustrated) |
|
- | |||||
| 57A | 5303289064 | Ferrule-air |
|
- |
