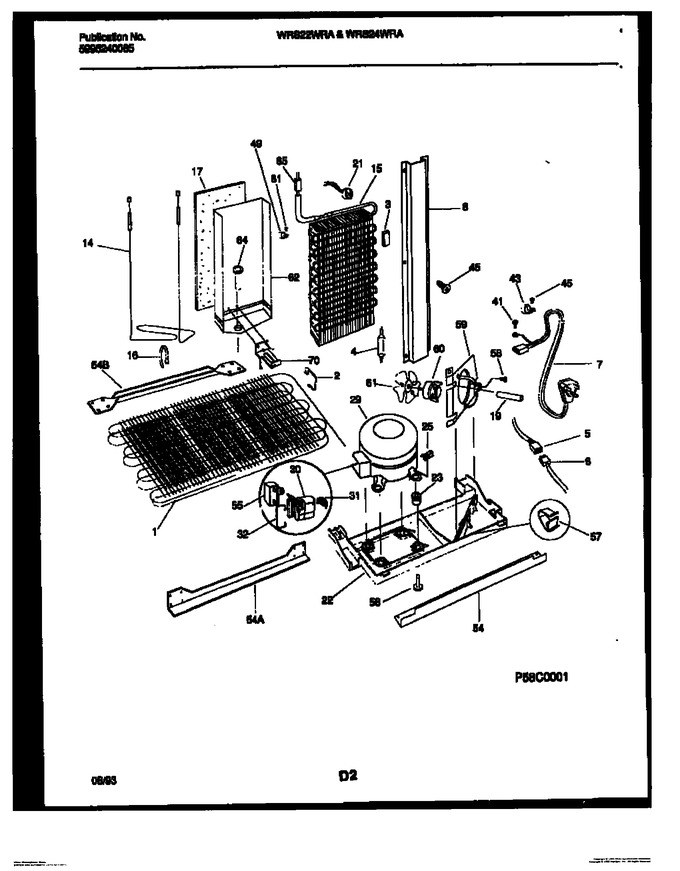

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215408100 | Condenser |
|
- | |||||
| 2 | 5303289029 | Clip-cond Mtg. (4) |
|
- | |||||
| 3 | 215226501 | Block-evap Coil,styrofoam Insul,rh |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 5 | 215458900 | Harness-wiring,main |
|
- | |||||
| 6 | 215501700 | Harness-wiring, Machine Compt |
|
- | |||||
| 7 | 215459201 | Cord-electric Power |
|
$ 66.47 | |||||
| 8 | 5303289033 | Cover-wiring |
|
- | |||||
| 14 | 5303289520 | Heater-defrost |
|
- | |||||
| 15 | 215289604 | Evaporator, W/heat Exchangr |
|
- | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum |
|
Immediately | $ 59.82 | ||||
| 17 | 5303289496 | Insulator-evap |
|
$ 2.63 | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 21 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 22 | 5303289030 | Base-compressor Mtg,(drain Pan) |
|
$ 213.57 | |||||
| 23 | 215175000 | Grommet-compr Mtg, (4) |
|
- | |||||
| 25 | 215014200 | Clip-compressor Mtg |
|
- | |||||
| 29 | 5303917193 | Compressor Only, W/o Electricals |
|
- | |||||
| 30 | 216008900 | Starter-ptc |
|
- | |||||
| 31 | 5303271616 | Overload |
|
$ 85.20 | |||||
| 32 | 215012000 | Wire-bale |
|
$ 2.63 | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 215174700 | Clamp, Service Cord, Strain Relief |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 49 | 215506900 | Bracket-evap Mtg |
|
- | |||||
| 54 | 5303289027 | Rail-cabinet Base,rear |
|
- | |||||
| 55 | 5303289028 | Capacitor-run |
|
- | |||||
| 56 | 215014100 | Pin-compressor Mtg,(4) |
|
- | |||||
| 57 | 215073800 | Clip-wiring Harness |
|
- | |||||
| 58 | 215004600 | Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2) |
|
- | |||||
| 59 | 5303289031 | Shroud-cond Fan Mtr |
|
- | |||||
| 15A | 3206414 | Tube-inlet (non-illustrated) |
|
$ 31.61 | |||||
| 1A | 5303208866 | Spacer-tube (non-illustrated) |
|
$ 1.94 | |||||
| 1B | 5303289026 | Spacer-tube (non-illustrated) |
|
- | |||||
| 3A | 215305900 | Block-evap Coil, Styrofoam Insul, Lh (non-illustrated) |
|
- | |||||
| 43A | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 43B | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 45A | 5300141713 | Screw-clamp Mtg, Spcl Hx Wshr Hd, 8-32 X 5/8 (non-illustrated) |
|
- | |||||
| 54A | 5303289311 | Rail-compr Support |
|
- | |||||
| 54A | 215732700 | Screw, Pan Head, 10-12 X 1/2 (non-illustrated) |
|
- | |||||
| 54B | 5303289292 | Rail-cabinet Base, Front |
|
- | |||||
| 5A | 215013800 | Harness-wiring, Refr Controls (non-illustrated) |
|
- | |||||
| 5B | 215381000 | Harness-wiring Frzr Controls (non-illustrated) |
|
- |
