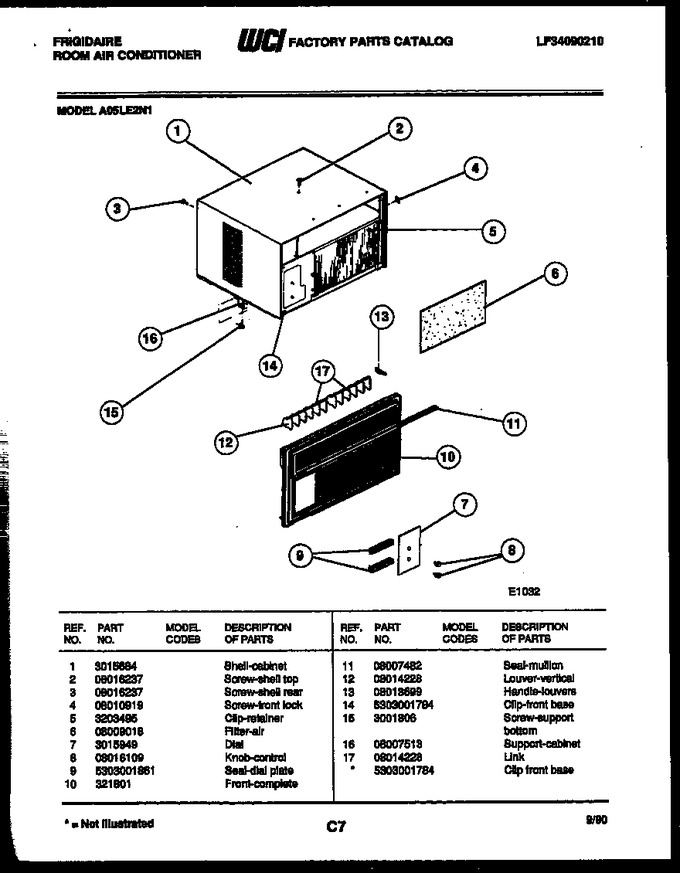

02 - Cabinet Parts
03 - Unit Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015684 | Shell-cabinet |
|
- | |||||
| 2 | 08016237 | Screw |
|
- | |||||
| 3 | 08016237 | Screw |
|
- | |||||
| 4 | 08010919 | Screw-front Lock |
|
- | |||||
| 5 | 3203495 | Clip-retainer |
|
- | |||||
| 6 | 08009018 | Filter-air |
|
- | |||||
| 7 | 3015949 | Dial |
|
- | |||||
| 8 | 08016109 | Knob-control |
|
- | |||||
| 9 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 10 | 321801 | Front-complete |
|
- | |||||
| 11 | 08007482 | Seal-mullion |
|
- | |||||
| 12 | 08014228 | Louver-vertical |
|
- | |||||
| 13 | 08013699 | Handle-louvers |
|
- | |||||
| 14 | 5303001784 | Clip-front Base |
|
- | |||||
| 15 | 3001806 | Screw-support Bottom |
|
- | |||||
| 16 | 08007513 | Support-cabinet |
|
- | |||||
| 17 | 08014228 | Link |
|
- | |||||
| *36513 | 5303001784 | Clip-front Base |
|
- |
