02 - Cabinet Parts
03 - Unit Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

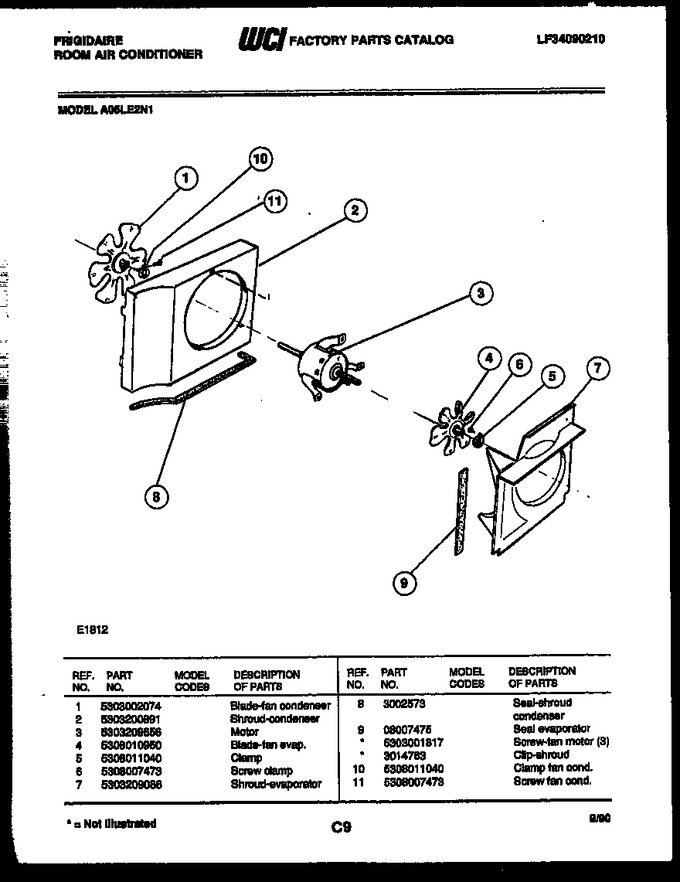

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002074 | Blade-fan Condenser |
|
- | |||||
| 2 | 5303200891 | Shroud-condenser |
|
- | |||||
| 3 | 5303209656 | Motor |
|
- | |||||
| 4 | 5308010950 | Blade-fan Evap |
|
- | |||||
| 5 | 5308011040 | Clamp |
|
- | |||||
| 6 | 5308007473 | Screw-clamp |
|
- | |||||
| 7 | 5303209086 | Shroud-evaporator |
|
- | |||||
| 8 | 3002573 | Seal-shroud Condenser |
|
- | |||||
| 9 | 08007475 | Seal-evaporator Shroud |
|
- | |||||
| 10 | 5308011040 | Clamp-fan Cond |
|
- | |||||
| 11 | 5308007473 | Screw Fan Cond. |
|
- | |||||
| 9A | 5303001817 | Screw-fan Motor (3) (non-illustrated) |
|
- | |||||
| 9B | 3014763 | Clip-shroud (non-illustrated) |
|
- |
