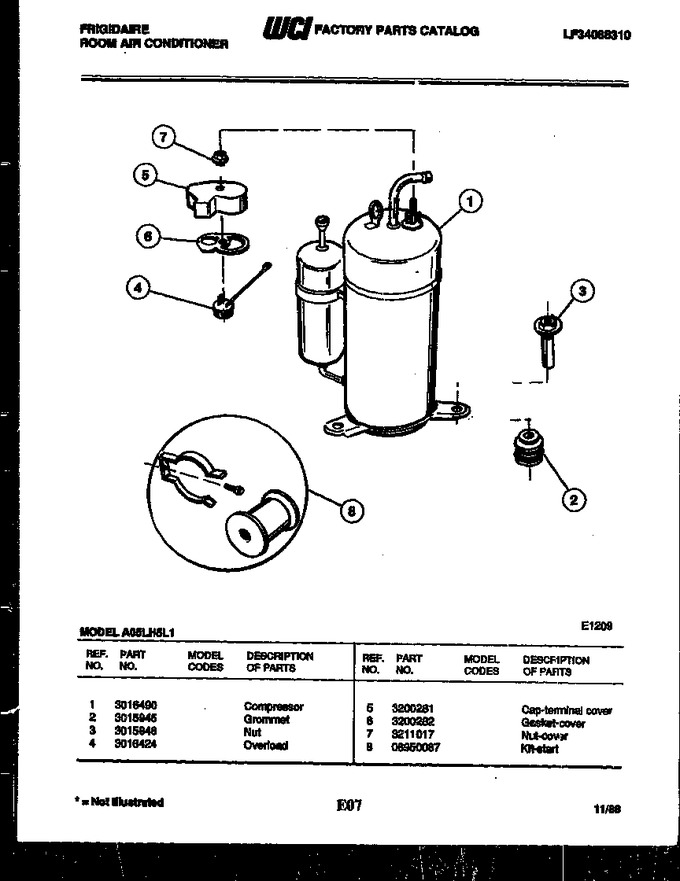

02 - Cabinet Parts
03 - Unit Parts
04 - Electrical Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016490 | Compressor |
|
- | |||||
| 2 | 3015945 | Grommet |
|
- | |||||
| 3 | 3015946 | Nut |
|
- | |||||
| 4 | 3016424 | Overload |
|
- | |||||
| 5 | 3200281 | Cap-terminal Cover |
|
- | |||||
| 6 | 3200282 | Gasket-cover |
|
- | |||||
| 7 | 3211017 | Nut-cover |
|
- | |||||
| 8 | 08950087 | Kit-start |
|
- |
