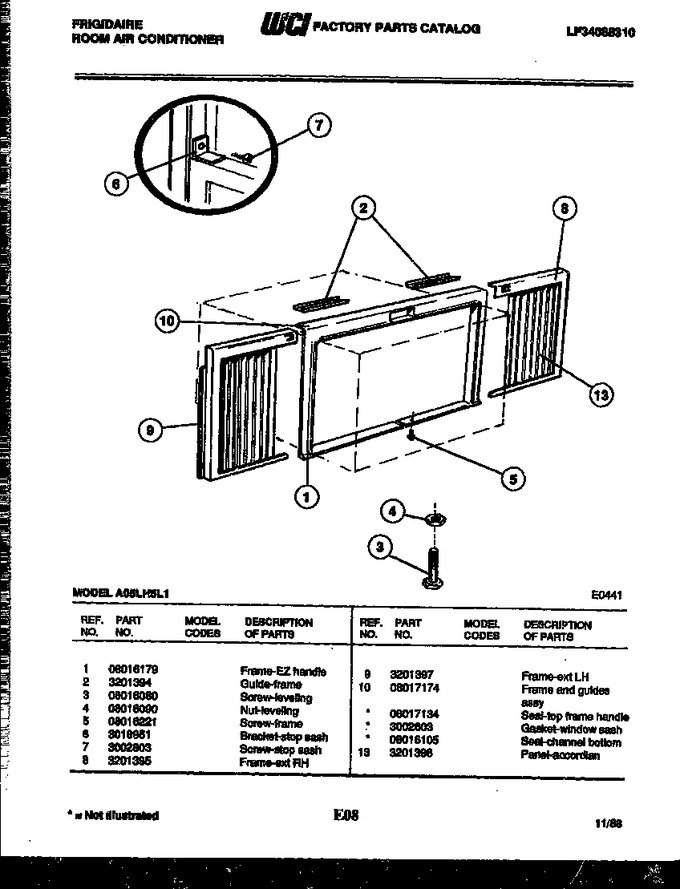

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Unit Parts
04 - Electrical Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016179 | Frame-ez Handle |
|
- | |||||
| 2 | 3201394 | Guide-frame |
|
- | |||||
| 3 | 08016080 | Screw-leveling |
|
- | |||||
| 4 | 08016090 | Nut-leveling |
|
- | |||||
| 5 | 08016221 | Screw-frame |
|
- | |||||
| 6 | 3018951 | Bracket-stop Sash |
|
- | |||||
| 7 | 3002803 | Screw-stop (sash) |
|
- | |||||
| 8 | 3201395 | Frame-ext Rh |
|
- | |||||
| 9 | 3201397 | Frame-ext Lh |
|
- | |||||
| 10 | 08017174 | Frame And Guides Assy |
|
- | |||||
| 13 | 3201396 | Panel-accordian |
|
- | |||||
| 10A | 08017134 | Seal-top Frame Handle (non-illustrated) |
|
- | |||||
| 10B | 3002603 | Gasket-window Sash (non-illustrated) |
|
- | |||||
| 10C | 08016105 | Seal-channel Bottom (non-illustrated) |
|
- |
