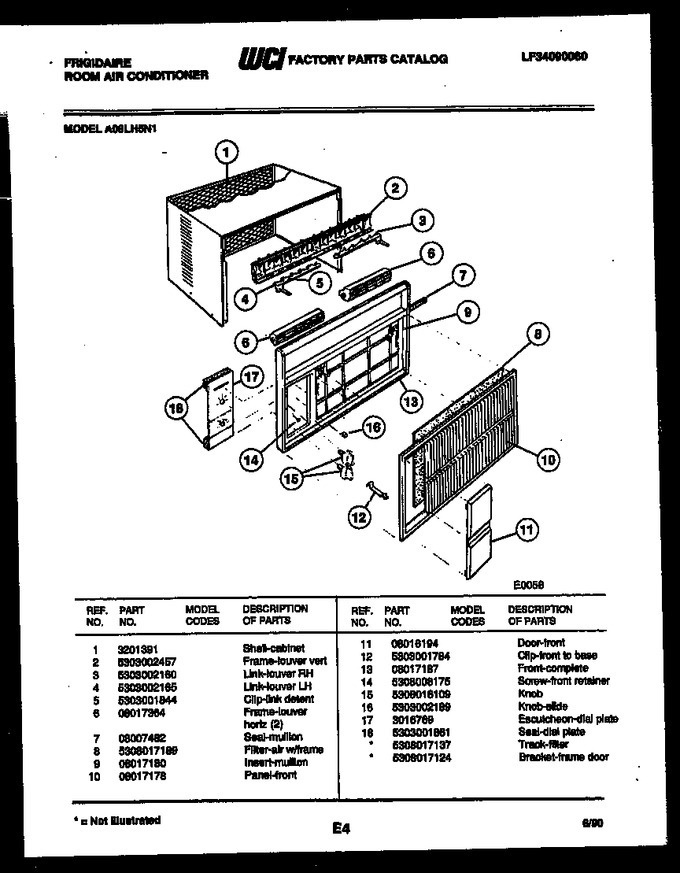

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Unit Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201391 | Shell-cabinet |
|
- | |||||
| 2 | 5303002457 | Frame-louver Vert |
|
- | |||||
| 3 | 5303002160 | Link-louver Rh |
|
- | |||||
| 4 | 5303002165 | Link-louver Lh |
|
- | |||||
| 5 | 5303001844 | Clip-link Detent |
|
- | |||||
| 6 | 08017364 | Frame-louver Horiz (2) |
|
- | |||||
| 7 | 08007482 | Seal-mullion |
|
- | |||||
| 8 | 5308017189 | Filter-air W/ Frame |
|
- | |||||
| 9 | 08017180 | Insert-mullion |
|
- | |||||
| 10 | 08017178 | Panel-front |
|
- | |||||
| 11 | 08016194 | Door-front |
|
- | |||||
| 12 | 5303001784 | Clip-front To Base |
|
- | |||||
| 13 | 08017187 | Front-complete |
|
- | |||||
| 14 | 5308008175 | Screw-front Retainer |
|
- | |||||
| 15 | 5308016109 | Knob |
|
- | |||||
| 16 | 5303002189 | Knob-slide |
|
- | |||||
| 17 | 3016769 | Escutcheon, Dial Plate |
|
- | |||||
| 18 | 5303001861 | Seal-dial Plate |
|
- | |||||
| *19549 | 5308017137 | Track-filter |
|
- | |||||
| *19549 | 5308017124 | Bracket-frame Door |
|
- |
