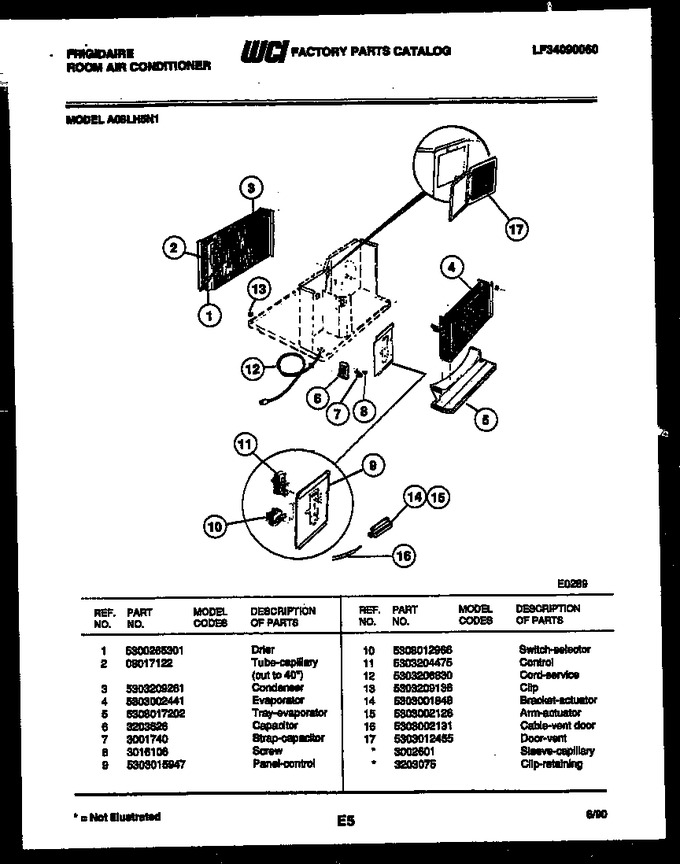

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Unit Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 2 | 08017122 | Tube-capillary (cut To 40``) |
|
- | |||||
| 3 | 5303209261 | Condenser |
|
- | |||||
| 4 | 5303002441 | Evaporator |
|
- | |||||
| 5 | 5308017202 | Tray-evaporator |
|
- | |||||
| 6 | 3203526 | Capacitor |
|
- | |||||
| 7 | 3001740 | Strap-capacitor |
|
- | |||||
| 8 | 3016106 | Screw |
|
- | |||||
| 9 | 5303015947 | Panel-control |
|
- | |||||
| 10 | 5308012966 | Switch-selector |
|
- | |||||
| 11 | 5303204475 | Control |
|
- | |||||
| 12 | 5303206830 | Cord-service |
|
- | |||||
| 13 | 5303209136 | Clip |
|
- | |||||
| 14 | 5303001848 | Bracket-actuator |
|
- | |||||
| 15 | 5303002126 | Arm-actuator |
|
- | |||||
| 16 | 5303002131 | Cable-vent Door |
|
- | |||||
| 17 | 5303012455 | Door Vent |
|
- | |||||
| *19552 | 3002601 | Sleeve-capillary |
|
- | |||||
| *19552 | 3203075 | Clip-retaining |
|
- |
