New Model Search:

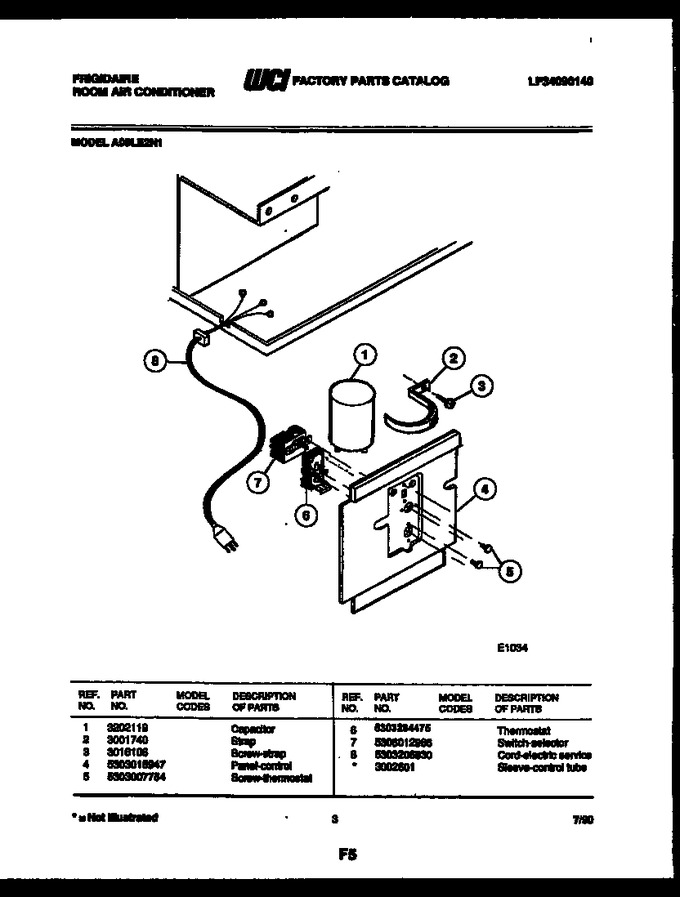

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202119 | Capacitor |
|
- | |||||
| 2 | 3001740 | Strap |
|
- | |||||
| 3 | 3016106 | Screw-strap |
|
- | |||||
| 4 | 5303015947 | Panel-control |
|
- | |||||
| 5 | 5303007754 | Screw-thermostat |
|
- | |||||
| 6 | 5303204475 | Thermostat |
|
- | |||||
| 7 | 5308012966 | Switch-selector |
|
- | |||||
| 8 | 5303206830 | Cord-electric Service |
|
- | |||||
| *33910 | 3002601 | Sleeve-control Tube |
|
- |
