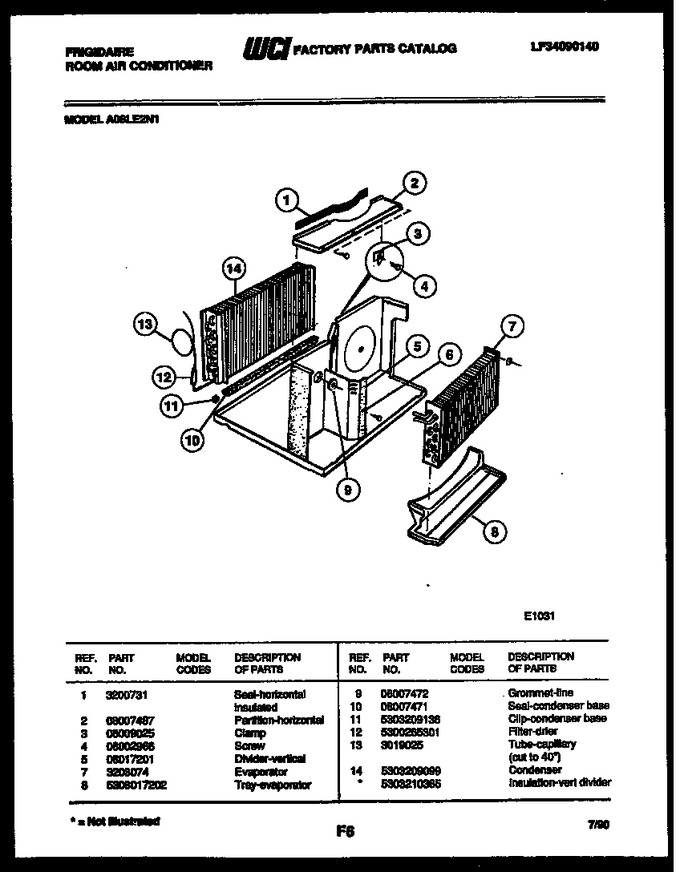

02 - Cabinet Parts
03 - Electrical Parts
04 - Unit Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200731 | Seal-horizontal Insulated |
|
- | |||||
| 2 | 08007487 | Partition-horizontal |
|
- | |||||
| 3 | 08009025 | Clamp |
|
- | |||||
| 4 | 08002966 | Screw |
|
- | |||||
| 5 | 08017201 | Divider-vertical |
|
- | |||||
| 7 | 3203074 | Evaporator |
|
- | |||||
| 8 | 5308017202 | Tray-evaporator |
|
- | |||||
| 9 | 08007472 | Grommet-line |
|
- | |||||
| 10 | 08007471 | Seal Condenser |
|
- | |||||
| 11 | 5303209136 | Clip-condenser Base |
|
- | |||||
| 12 | 5300265301 | Filter-drier |
|
$ 284.30 | |||||
| 13 | 3019025 | Tube-capillary (cut To 40``) |
|
- | |||||
| 14 | 5303209099 | Condenser |
|
- | |||||
| *33911 | 5303210365 | Insulation-vert Divider |
|
- |
