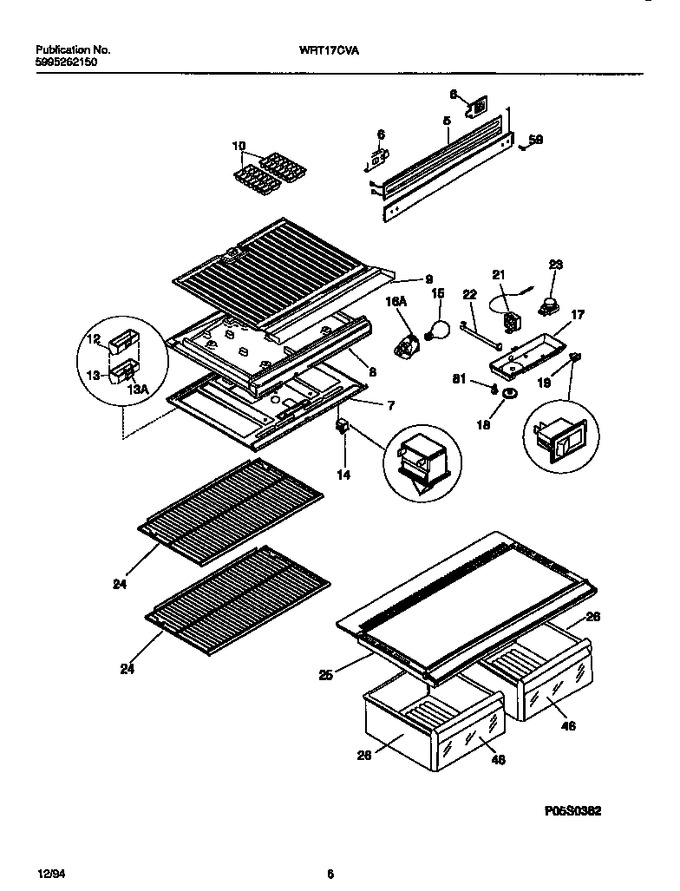

SELECT A DIAGRAM

02 - Door


03 - Cabinet, Fan Assembly


04 - Shelves, Dividers


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218430711		Mullion, Almond				$ 65.59
5	218271601		Heater, Mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	3206185		Top Panel - Refr		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
8	5303206754		Washer, No. 10 Flat, 7/32 X 7/16 Od, Steel (ni)		Appelez-nous	-
8	215422600		Harness, Wiring, Control/divider (ni)		Appelez-nous	-
8	3205266		Protector, Edge (ni)				$ 80.09
8	3206186		Divider, Styrofoam		Appelez-nous	-
9	3206187		Bottom Panel - Frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
12	5303001449		Seal, Air Deflector (ni)				$ 2.12
12	5308014667		Deflectro, Air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303207194		Light Bulb/lamp		Appelez-nous	-
17	5308016567		Nut, Anchor (ni)		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
21	5303001260		Screw				$ 6.73
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	215945900		Timer		Appelez-nous	-
24	5303283106		Shelf, Sliding, Wire, Refr Section		Appelez-nous	-
25	215379500		Cover - Crisper Pan, Complete		Appelez-nous	-
26	3206180		Pan - Crisper				$ 155.70
46	5303208183		Front - Crisper Pan		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	215752200		Socket, Light/lamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
