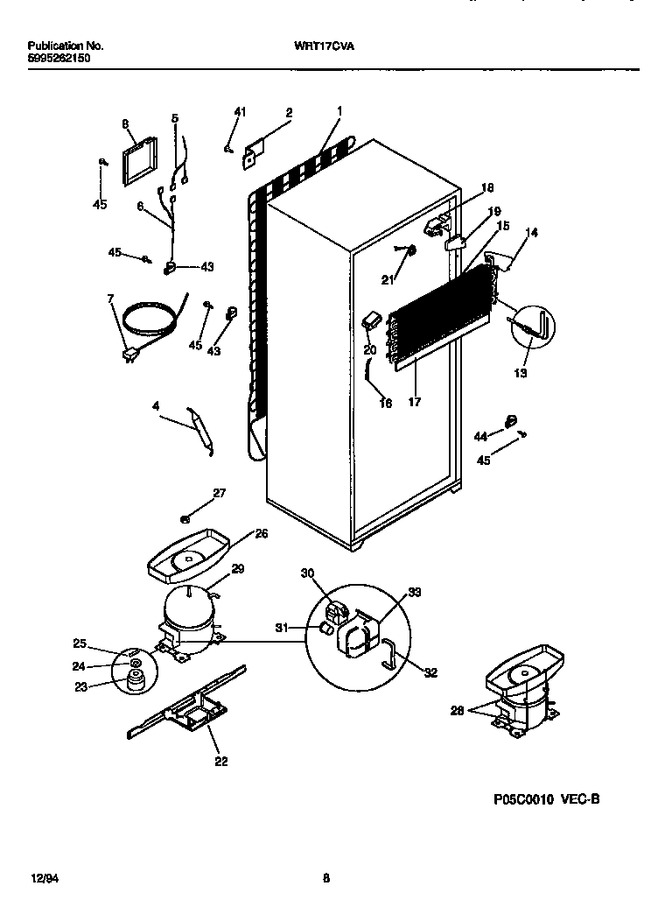

05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017691		Spacer, Tube (ni)				$ 64.91
1	218174000		Condenser		Appelez-nous	-
2	5308000296		Bracket, Mountin, Condenser, (4)				$ 30.20
4	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
5	215422600		Harness, Wiring, Control/divider		Appelez-nous	-
6	5303299397		Harness, Wiring, Compressor		Appelez-nous	-
7	5303294039		Cord, Electric Power		Appelez-nous	-
8	5308013390		Bracket, Grounding (ni)		Appelez-nous	-
8	5303206754		Washer, No. 10 Flat, 7/32 X 7/16 Od, Steel (ni)		Appelez-nous	-
8	5303270915		Connector Plug, Rh (ni)		Appelez-nous	-
8	5303270512		Nut, 8-32 Hex, (2) (ni)		Appelez-nous	-
8	5303294036		Cover-wiring		Appelez-nous	-
13	215133500		Heat-exchanger, Suction Line		Appelez-nous	-
14	5303210355		Heater, Defrost		Appelez-nous	-
15	5308009756		Evaporator		Appelez-nous	-
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5316651102		Insulator-evap, Plastic				$ 53.04
18	5308013648		Insulation Block, Rh		Appelez-nous	-
19	5303007287		Insulation Plug, Rh		Appelez-nous	-
20	5308017227		Insulation Block, Lh		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	3206126		Plate-compr Mtg, With Rail		Appelez-nous	-
23	218254500		Grommet-compr Mtg, (4)		Appelez-nous	-
23	215175000		Grommet-compr Mtg, (4)		Appelez-nous	-
24	5308003633		Washer-compr Mtg				$ 35.67
25	5308003596		Clip - Compressor Mtg				$ 6.62
26	5300184715		Pan-defrost Drain, Orig/svce Compr		Appelez-nous	-
26	5308017610		Sound Tape, Dfr Pan (ni)		Appelez-nous	-
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
29	5303916804		Compressor W/elec, Service		Appelez-nous	-
30	5303211376		Relay		Appelez-nous	-
31	5303270973		Overload		Appelez-nous	-
32	5303006412		Strap-cover		Appelez-nous	-
33	5303006411		Cover, Termial		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
43	5303207327		Clamp-service Cord, Plastic, Strain Relief		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
44	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
45	5300141713		Screw-clamp Mtg, Hex Washer Head, 8-32 X 5/8, Special		Appelez-nous	-
45	5303207199		Screw-wiring Cover, Torx Pan Head, 10-12(a) X 1/2		Appelez-nous	-
45A	5303916744		Hot Tube Repair Kit, Service (ni)		Appelez-nous	-
