02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

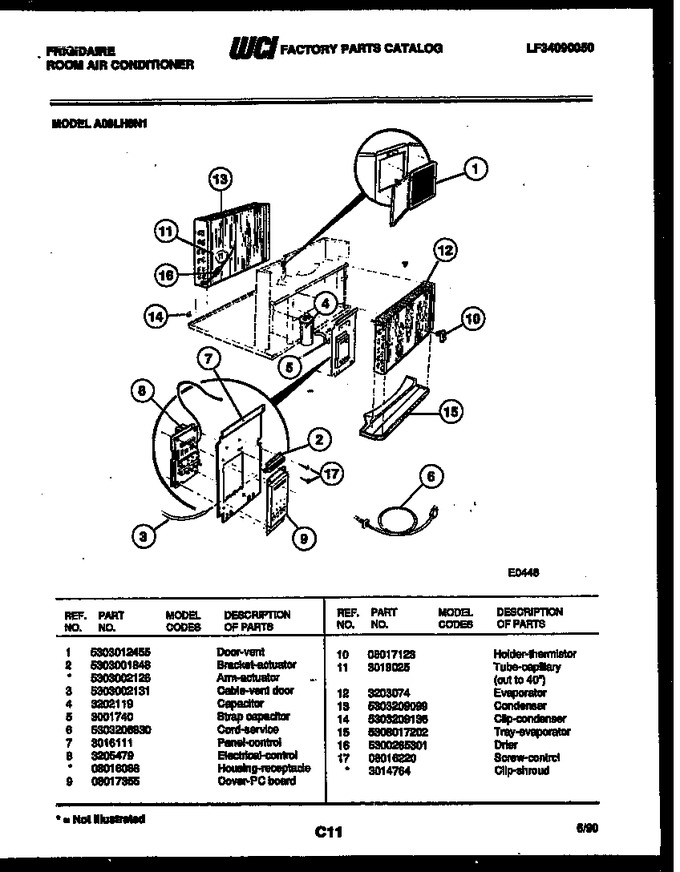

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303012455 | Door Vent |
|
- | |||||
| 2 | 5303001848 | Bracket-actuator |
|
- | |||||
| 3 | 5303002131 | Cable-vent Door |
|
- | |||||
| 4 | 3202119 | Capacitor |
|
- | |||||
| 5 | 3001740 | Strap-capacitor |
|
- | |||||
| 6 | 5303206830 | Cord-service |
|
- | |||||
| 7 | 3016111 | Panel-control |
|
- | |||||
| 8 | 3205479 | Electrical-control |
|
- | |||||
| 9 | 08017355 | Cover - Pc Board |
|
- | |||||
| 10 | 08017123 | Holder - Thermistor |
|
- | |||||
| 11 | 3019025 | Tube-capillary (cut To 40``) |
|
- | |||||
| 12 | 3203074 | Evaporator |
|
- | |||||
| 13 | 5303209099 | Condenser |
|
- | |||||
| 14 | 5303209136 | Clip-condenser |
|
- | |||||
| 15 | 5308017202 | Tray-evaporator |
|
- | |||||
| 16 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 17 | 08016220 | Screw - Control |
|
- | |||||
| *31657 | 3014764 | Clip-shroud |
|
- | |||||
| 2A | 5303002126 | Arm-actuator (non-illustrated) |
|
- | |||||
| 8A | 08016086 | Housing-receptacle (non-illustrated) |
|
- |
