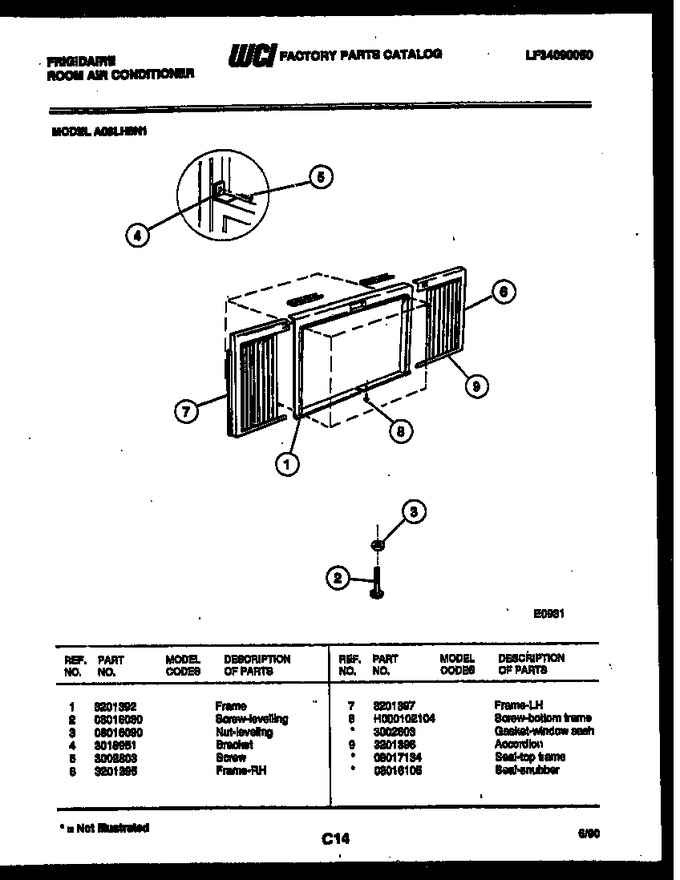

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201392 | Frame |
|
- | |||||
| 2 | 08016080 | Screw-levelling |
|
- | |||||
| 3 | 08016090 | Nut-leveling |
|
- | |||||
| 4 | 3018951 | Bracket |
|
- | |||||
| 5 | 3002803 | Screw |
|
- | |||||
| 6 | 3201395 | Frame-rh |
|
- | |||||
| 7 | 3201397 | Frame-lh |
|
- | |||||
| 9 | 3201396 | Accordion |
|
- | |||||
| *31659 | 08016105 | Seal-snubber |
|
- | |||||
| *31659 | 08017134 | Seal-top Frame |
|
- | |||||
| 8A | 3002603 | Gasket-window Sash (non-illustrated) |
|
- | |||||
| 8H | 000102104 | Screw-bottom Frame |
|
- |
