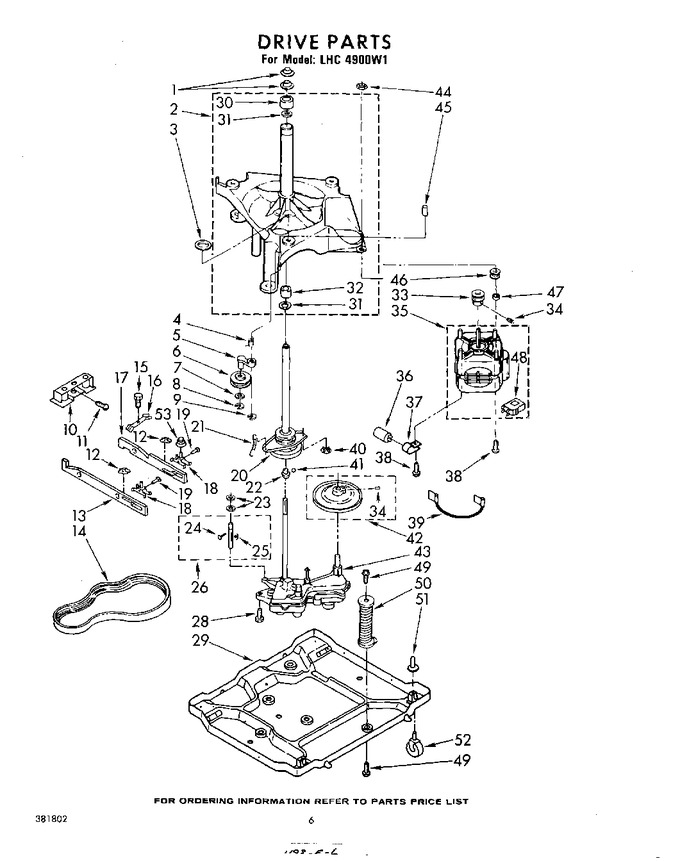

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8577376 | Seal, Centerpost (2) (Replaces: 356934) |
|
Immediately | $ 6.47 | ||||
| 2 | 359179 | Baseplate & Centerpost |
|
- | |||||
| 3 | 17235 | Gasket, Tub (3) |
|
$ 249.30 | |||||
| 4 | 356137 | Spring, Idler Arm |
|
- | |||||
| 5 | 366856 | Idler Arm & Shaft |
|
- | |||||
| 6 | 366855 | Pulley, Idler |
|
- | |||||
| 7 | 356133 | Washer, Thrust |
|
- | |||||
| 8 | 356087 | Ring, Retainer |
|
- | |||||
| 9 | 356088 | Ring, Retainer |
|
- | |||||
| 10 | 365998 | Magnet |
|
- | |||||
| 11 | 16135 | Screw, Taper End |
|
- | |||||
| 12 | 95462 | Guide, Cam Bar |
|
- | |||||
| 13 | 350532 | Cam, Bar Spin (Replaces: 354838) |
|
- | |||||
| 14 | 356402 | Belt, ``v`` (alternate) |
|
- | |||||
| 14 | 356403 | Belt, ``v`` ((alternate)) |
|
- | |||||
| 15 | 98001 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 16 | 94726 | Spring, Brake |
|
- | |||||
| 17 | 18642 | Cam, Agitator & Pump |
|
$ 24.51 | |||||
| 18 | 84866 | Plunger |
|
- | |||||
| 19 | 354959 | Rivet |
|
- | |||||
| 20 | 383932 | Basket Drive & Brake (refer To Page 11 For Further Breakdown) (Replaces: 359175) |
|
- | |||||
| 21 | 17261 | Spring, Brake Yoke |
|
- | |||||
| 22 | 358586 | Support, Spin Tube |
|
- | |||||
| 23 | 90315 | Washer (2) |
|
- | |||||
| 24 | 90532 | Pin, Roll |
|
- | |||||
| 25 | 92119 | Roller, Basket Clutch Shaft |
|
- | |||||
| 26 | 359460 | Shaft, Basket Clutch |
|
- | |||||
| 28 | 356154 | Screw & Washer (3) |
|
- | |||||
| 29 | 359321 | Baseplate, Lower |
|
- | |||||
| 30 | 356993 | Bearing, Upper |
|
- | |||||
| 31 | W11095997 | Seal, Shaft (2) (Replaces: 359449) |
|
Immediately | $ 20.07 | ||||
| 32 | 354195 | Bearing, Lower |
|
- | |||||
| 33 | 356939 | Pulley, Motor |
|
- | |||||
| 34 | 355345 | Setscrew, 5/16-18 X 1/2 |
|
$ 5.04 | |||||
| 35 | 358816 | Motor, 60 Hz. (emerson) |
|
- | |||||
| 36 | WP8572717 | Capacitor, Motor Start (Replaces: 357021) |
|
Immediately | $ 72.13 | ||||
| 37 | 357030 | Clamp, Capacitor |
|
$ 18.98 | |||||
| 38 | WP3390631 | Screw, Motor Ground (Replaces: 9420601) |
|
$ 7.04 | |||||
| 39 | 370950 | Harness, Jumper |
|
- | |||||
| 40 | 356444 | Retainer, Brake Yoke |
|
$ 5.33 | |||||
| 41 | 358585 | Ball |
|
- | |||||
| 42 | 356155 | Pulley, Main Drive |
|
- | |||||
| 43 | 359279 | Gearcase (refer To Page 10 For Further Breakdown) |
|
- | |||||
| 44 | 98023 | Nut, Motor Mounting (4) |
|
- | |||||
| 45 | 356638 | Sleeve, Cabinet Support (2) |
|
- | |||||
| 46 | 356322 | Grommet, Motor (4) |
|
- | |||||
| 47 | 19119 | Bumper, Motor Stud (2) |
|
$ 5.75 | |||||
| 48 | 362738 | Switch, Motor Start (use W/emerson Motor) |
|
- | |||||
| 49 | 425583 | Screw & Washer |
|
- | |||||
| 50 | 367011 | Spring & Dampener (no. 1) |
|
- | |||||
| 50 | 367013 | Spring & Dampener (no. 2) |
|
- | |||||
| 50 | 367012 | Spring & Dampener (no. 3) |
|
- | |||||
| 51 | 717588 | Socket (4) |
|
- | |||||
| 52 | 357042 | Caster, Front (2) |
|
- | |||||
| 52 | 718534 | Caster, Rear (2) |
|
- | |||||
| 53 | 358354 | Spring, Agitator Plunger |
|
- |
