SELECT A DIAGRAM

02 - Cabinet


03 - Top And Console


04 - Drive


05 - Water Pump , Lit/optional

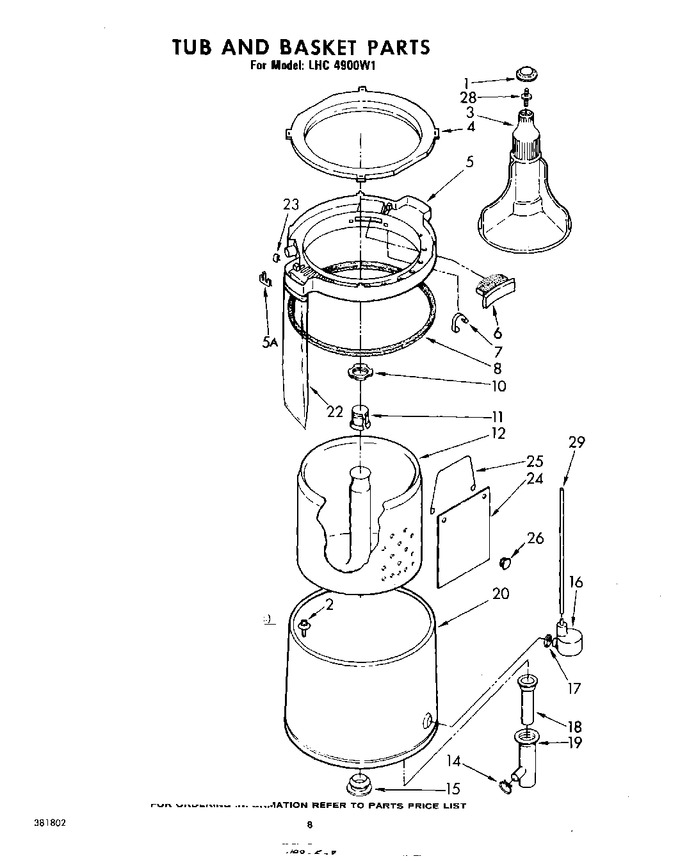

06 - Tub And Basket


07 - Optional Permanent Installation 28


08 - Gearcase


09 - Basket Drive And Brake


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	356381		Cap, Agitator		Appelez-nous	-
2	WP358237		Screw & Washer (3)   (Replaces: 370571)			Immediately	$ 7.97
3	367200		Agitator		Appelez-nous	-
4	356153		Shield, Tub Ring		Appelez-nous	-
5	350987		Tub Ring Retainer Kit (used To Retain Tub Ring Shield If One Or More Tub Ring Tabs Are Broken. Kit C		Appelez-nous	-
5	367315		Tub Ring Assembly		Appelez-nous	-
6	356423		Insert, Filter		Appelez-nous	-
7	356141		Clip, Tub Ring (5)		Appelez-nous	-
8	356380		Gasket, Tub Ring		Appelez-nous	-
10	356995		Locknut		Appelez-nous	-
11	357836		Block, Basket Drive		Appelez-nous	-
12	359174		Basket Assembly		Appelez-nous	-
14	WP285655		Clamp, Hose   (Replaces: 353097)			Immediately	$ 7.55
15	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
16	360804		Air Dome Assembly		Appelez-nous	-
17	351830		Seal				$ 5.84
18	356201		Funnel, Drain		Appelez-nous	-
19	357160		Manifold, Tub Outlet		Appelez-nous	-
20	367162		Tub		Appelez-nous	-
22	356398		Tube, Drain Off				$ 71.61
23	8577411		Clip   (Replaces: 352155)				$ 7.25
24	357623		Shield, Splash		Appelez-nous	-
25	357622		Support, Splash Shield		Appelez-nous	-
26	356288		Clip, Push-on (2)		Appelez-nous	-
28	WP358237		Screw & Washer   (Replaces: 358237)			Immediately	$ 7.97
29	799351		Paint, Touch-up (1 Qt.) (thinner (1 Gal.))		Appelez-nous	-
29	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
29	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
29	350941		Paint, Pressurized Spray (leveler (thinner))		Appelez-nous	-
29	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
29	978883		Xpaint, Touch-up (1 Qt.) (almond (uncut))		Appelez-nous	-
29	261887		Xpaint, Touch-up (1 Qt.) (coffee (uncut))		Appelez-nous	-
29	261889		Xpaint, Touch-up (1 Qt.) (new Avocado (uncut))		Appelez-nous	-
29	261891		Xpaint, Touch-up (1 Qt.) (golden Harvest (uncut))		Appelez-nous	-
29	350956		Paint, Pressurized Spray (almond)				$ 46.30
29	WP353244		Hose, Pressure Switch   (Replaces: 353161)			Immediately	$ 53.94
29	370577		Bag, Miscellaneous Parts		Appelez-nous	-
29	378945		Instructions, Installation		Appelez-nous	-
29	358770		Guide, Laundry		Appelez-nous	-
29	379239		Instruction, Operating		Appelez-nous	-
29	381802		List, Repair Parts		Appelez-nous	-
29	382216		Label, Energy Guide		Appelez-nous	-
29	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
29	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
29	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
29	35093		Paint, Pressurized Spray (white)		Appelez-nous	-
29	261886		Paint, Pressurized Spray (coffee)		Appelez-nous	-
29	261888		Paint, Pressurized Spray (new Avocado)		Appelez-nous	-
29	261890		Paint, Pressurized Spray (golden Harvest)		Appelez-nous	-
29	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
