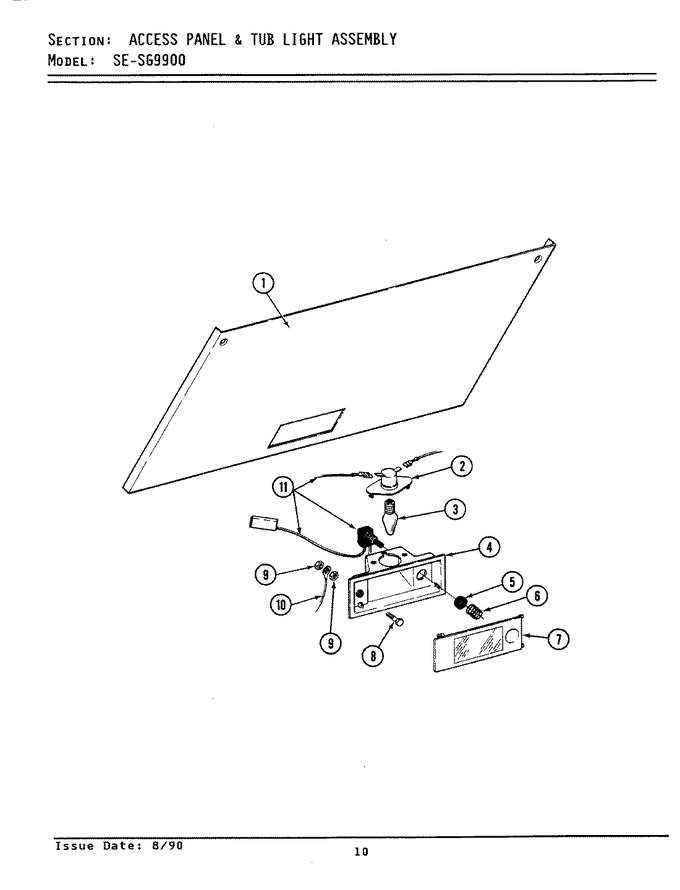

01 - Access Panel & Tub Light


02 - Base, Pump, Motor & Components


03 - Cabinet & Front Panel


04 - Cabinet, Relays & Dryer Stand


05 - Cabinet, Top Cover & Water Valve (rear)


06 - Clutch, Brake & Belts


07 - Door, Front Panel & Control Panel


08 - Front View


09 - Inlet Duct & Heater Assembly (se9900)


10 - Motor, Blower, Thermostats & Lint Screen


11 - Top Cover, Lid & Lid Lock Assembly


12 - Transmission-orbital


13 - Tub, Agitator, Mtg. Stem, Hoses & Clamps


14 - Tumbler (front & Back)


15 - Tumbler (frt & Back) (ese9900 & Esg9900)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307844		Access Panel (wht)	00	Appelez-nous	-
2	315198		Lamp Holder	00	Appelez-nous	-
3	W10857122		Light   (Replaces: Y307100)	00			$ 12.45
4	315195		Lamp Bracket	00	Appelez-nous	-
5	315197		Nut For Tub Light Switch	00	Appelez-nous	-
6	315196		Spring For Tub Light	00	Appelez-nous	-
7	Y307845		Lens Assembly	00	Appelez-nous	-
8	WPW10143462		Screw   (Replaces: 315211)	00			$ 5.40
9	M0282005		Locknut   (Replaces: 912077)	00			$ 7.07
10	204807		Grnd.wire,supp.plte To Top Cvr	00	Appelez-nous	-
11	Y307847		Switch And Wire Assembly	00	Appelez-nous	-
