SELECT A DIAGRAM

01 - Access Panel & Tub Light


02 - Base, Pump, Motor & Components


03 - Cabinet & Front Panel


04 - Cabinet, Relays & Dryer Stand


05 - Cabinet, Top Cover & Water Valve (rear)


06 - Clutch, Brake & Belts


07 - Door, Front Panel & Control Panel


08 - Front View


09 - Inlet Duct & Heater Assembly (se9900)


10 - Motor, Blower, Thermostats & Lint Screen


11 - Top Cover, Lid & Lid Lock Assembly


12 - Transmission-orbital


13 - Tub, Agitator, Mtg. Stem, Hoses & Clamps


14 - Tumbler (front & Back)


15 - Tumbler (frt & Back) (ese9900 & Esg9900)

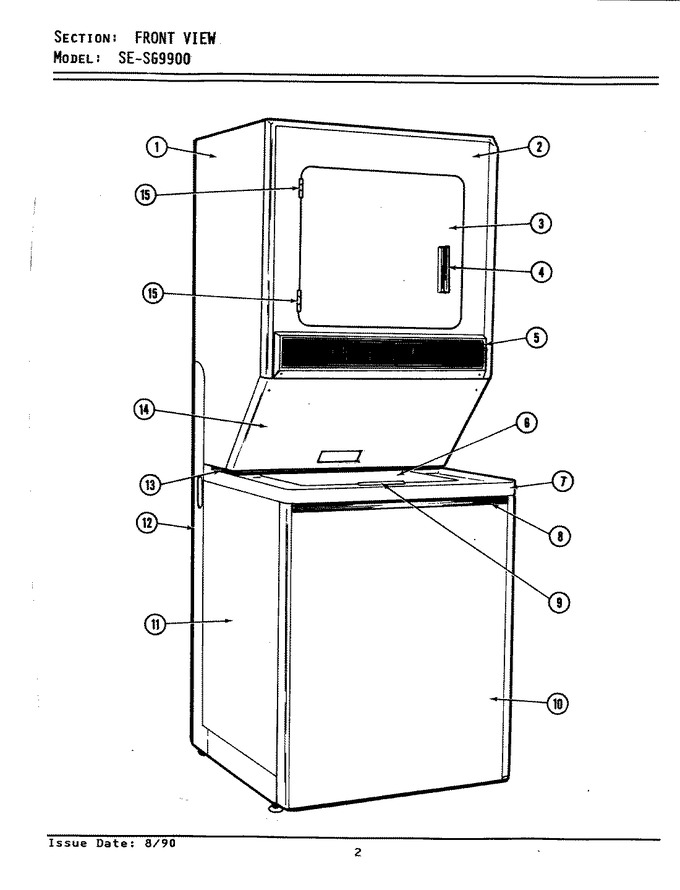

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	308055		Cabinet (wht)	00	Appelez-nous	-
2	314474		Front Panel-white	00	Appelez-nous	-
3	314475		Panel, Outer Door (wht)	00	Appelez-nous	-
4	314476		Handle,door	00	Appelez-nous	-
5	210932		Screw, No.8 X 9/16 Ctsk	00	Appelez-nous	-
5	307851		Control Panel	00	Appelez-nous	-
6	215251		Lid-white	00	Appelez-nous	-
7	207579		Top Cover (white)	00	Appelez-nous	-
8	215266		Trim, Front Panel	00	Appelez-nous	-
9	206667		Handle With Nuts	00	Appelez-nous	-
10	207205		Panel, Front (wht)	00	Appelez-nous	-
11	207207		Cabinet Wht	00	Appelez-nous	-
12	Y306110		Stand, Dryer (complete) (wht)	00	Appelez-nous	-
13	215245		Bridge For Top Cover Na	00	Appelez-nous	-
14	307844		Access Panel (wht)	00	Appelez-nous	-
15	Y304577		Door Hinge	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
