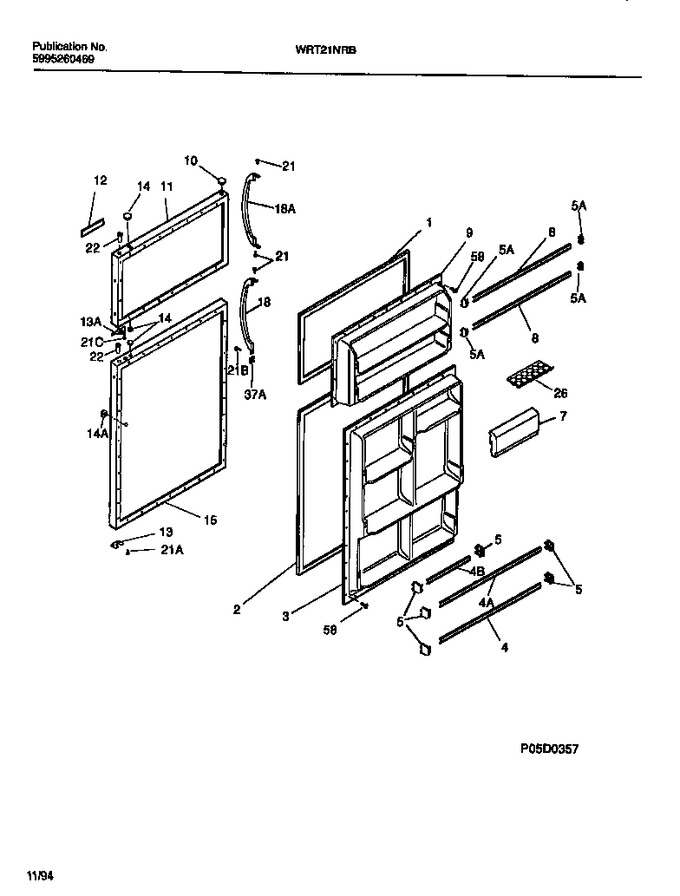

02 - Door
03 - Cabinet W/ Fan Assembly
05 - Shelves, Controls, Divider, Mullion
06 - Cooling System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608913 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 215732413 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366039 | Rack - Door |
|
- | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 215058105 | Door - Dairy |
|
- | |||||
| 8 | 215366036 | Rack - Door |
|
- | |||||
| 9 | 215530301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917379 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 215220302 | Label - Nameplate, Gray / White Ltrs |
|
- | |||||
| 12 | 215366301 | Frame - Nameplate,white |
|
- | |||||
| 12 | 5315340712 | Tape, Adhesive, 12`` Lg, Foam, Double, Faced (non-illust |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr Section |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917402 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 15 | 215894100 | Cross Brace, Door (included In Item 15) (non-illustrat |
|
- | |||||
| 18 | 215915540 | Handle-door, 19.86``, White, W/handle Ends |
|
- | |||||
| 21 | 5303272566 | Screw - Handle Mtg, Oval Head, 10-24 (d) X 5/8,white, C |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *30920 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 218249001 | Door Stop, White, Frzr |
|
$ 82.06 | |||||
| 14A | 251352201 | Plug, Button, White Refr Door Front |
|
- | |||||
| 18A | 215915538 | Handle-door, 19.51``, White W/handle Ends |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 21B | 215733200 | Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2 |
|
- | |||||
| 21C | 218252201 | Screw, Cr Truss Head, 10-32(ca) X 1/2 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 37A | 215480205 | Trim-handle, End Cap, White, Refr Door |
|
- | |||||
| 4A | 215366038 | Rack - Door |
|
- | |||||
| 4B | 215366040 | Rack - Door |
|
- | |||||
| 5A | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 |
