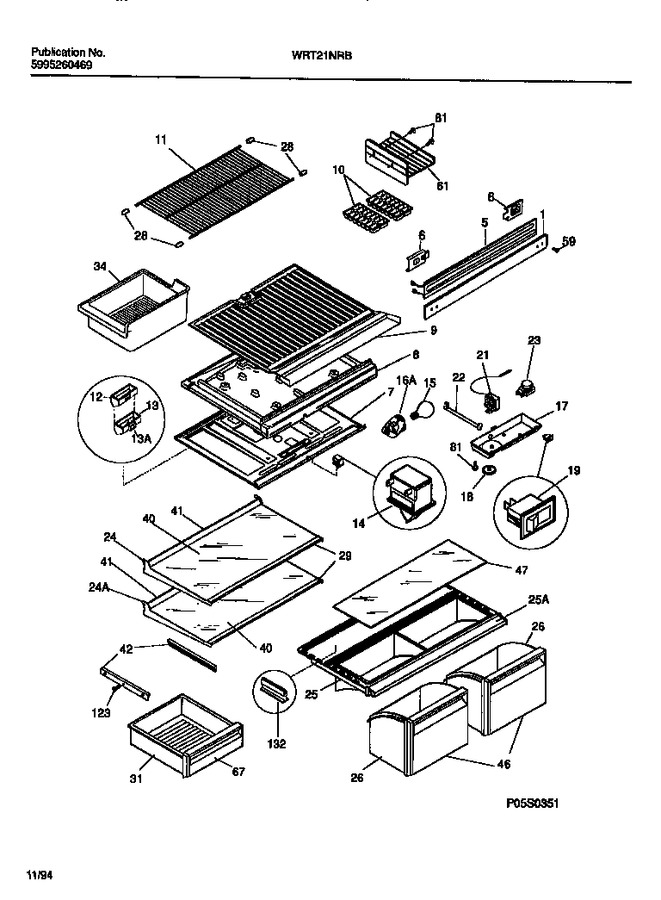

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218252503		Mullion, White		Appelez-nous	-
5	218271402		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	3019038		Top Panel-refr		Appelez-nous	-
8	5303019039		Divider, Styrofoam		Appelez-nous	-
8	3205266		Protector-edge (non-illustrated)				$ 80.09
8	3019040		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
11	218159700		Spacer-frzr Shelf (non-illustrated)		Appelez-nous	-
12	5303001449		Seal, Air Deflector (included In Item 12) (non-illustr				$ 2.12
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
17	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303001260		Screw				$ 6.73
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215919117		Frame-full Shelf, Cantilever		Appelez-nous	-
25	215363203		Cover-crisper Pan, Less Insert		Appelez-nous	-
26	215363301		Pan - Crisper, Tilt-out		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	215919705		Trim-shelf, 26.80``, Front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
40	215723554		Glass-shelf, 26.76`` X 14.57``, Clear				$ 102.25
41	21591805		Trim, Shelf, 26.80``, Rear		Appelez-nous	-
42	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
42	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
46	215363404		Front - Crisper Pan		Appelez-nous	-
47	5303303763		Insert - Pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5303304686		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw, Roll/hanger, 8, 10 X 7/16   (Replaces: 215005100)				$ 14.89
132	215426600		Support, Crspr Cover, Rear		Appelez-nous	-
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
24A	215919122		Frame, Meat Kpr Shlf, Cantilever		Appelez-nous	-
25A	5303299975		Trim - Crisper Cover		Appelez-nous	-
