Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 69243-2 Liner, F.f. Door 10 Appelez-nous -
2 70024-4 Gasket, F.f. Door (wht) 10 Special Order $ 184.29

3 65275-5 Screw 10 Appelez-nous -
4 69918-11 Door, Dairy 10 Appelez-nous -
5 69872-51 Shelf, Pick Off 10 Appelez-nous -
6 69871-10 Front, Pick-off 10 Appelez-nous -
6 69871-9 Front, Pick Off 10 Appelez-nous -
7 69759-2 Organizer 10 Appelez-nous -
8 60066-1 Tray, Egg 10 Appelez-nous -
9 70300-2 Retainer, Bottle 10 Appelez-nous -
10 70299-1 Ratchet, Bottle Retainer 10 Appelez-nous -
11 70317-1 Bushing, Bottle Retainer 10 Appelez-nous -
12 29936-2 Tray, Butter 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

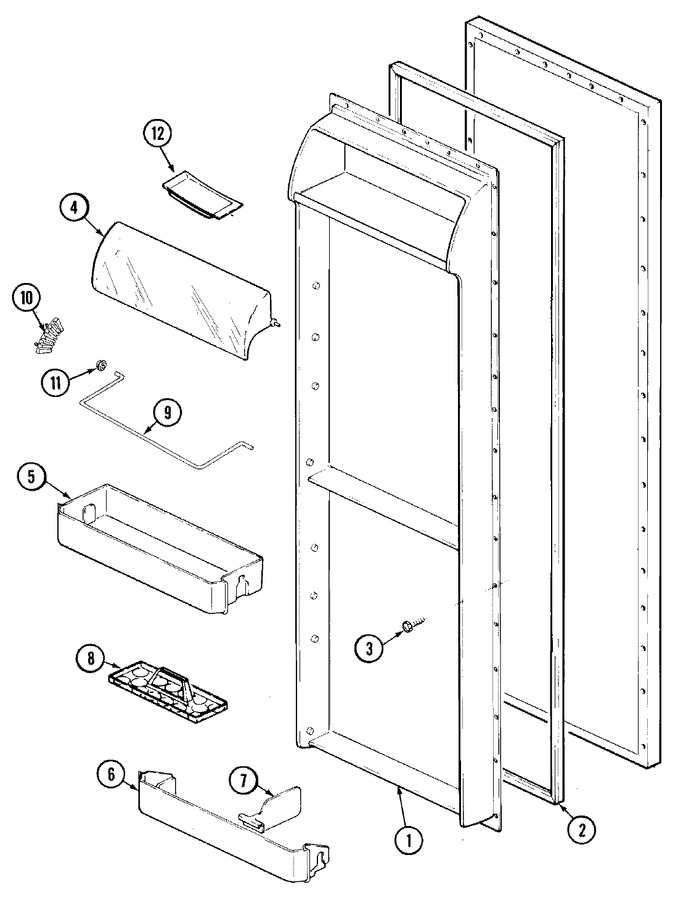

Diagram for SILVER22
