01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice & Water Dispenser


08 - Ice Crusher & Bin


09 - Ice Maker


10 - Shelves & Accessories


11 - Unit Compartment & System


12 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

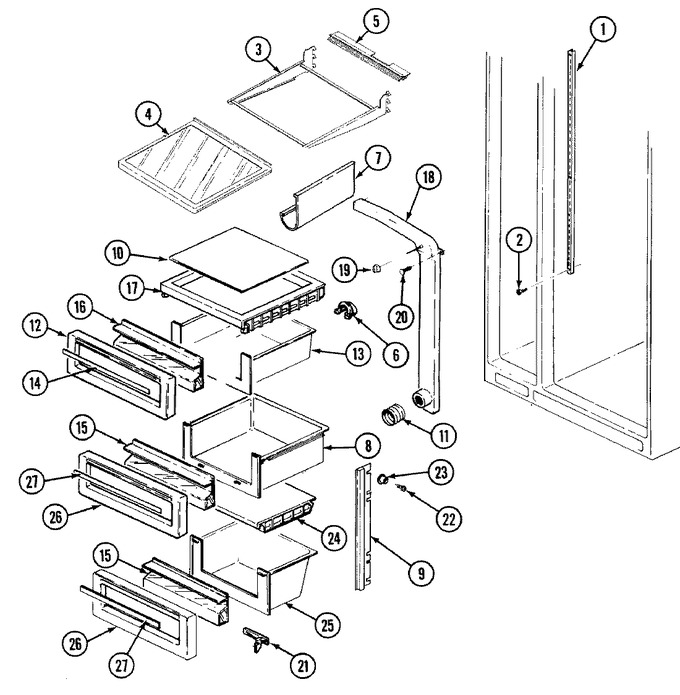

1	67311-1		Rail, Shelf Support	10	Appelez-nous	-
2	400037-28		Screw	10	Appelez-nous	-
3	70310-2		Frame, Shelf	10	Appelez-nous	-
4	70307-1		Shelf, Slide	10	Appelez-nous	-
5	70298-3		Baffle, Shelf	10	Appelez-nous	-
6	68391-1		Cover, Air Inlet	10	Appelez-nous	-
7	67308-7		Holder, Wine Bottle	10	Appelez-nous	-
8	69652-1		Pan, Crisper	10	Appelez-nous	-
9	69850-1		Gasket	10	Appelez-nous	-
10	69646-3		Glass, Meat Shelf	10	Appelez-nous	-
11	68282-1		Bellows, Air Tunnel	10	Appelez-nous	-
12	69650-2		Front, Meat Pan	10	Appelez-nous	-
13	69647-1		Pan, Meat	10	Appelez-nous	-
14	69666-16		Insert, Meat Front	10	Appelez-nous	-
15	69656-3		Handle, Crisper Front	10	Appelez-nous	-
16	69649-1		Handle	10	Appelez-nous	-
17	69645-1		Shelf, Meat Pan	10	Appelez-nous	-
18	69640-2		Tunnel, Air (meat)	10	Appelez-nous	-
19	68755-2		Knob, Air Tunnel	10	Appelez-nous	-
20	28013-2		Rivet, Air Tunnel	10	Appelez-nous	-
21	69657-2		Slide, Control	10	Appelez-nous	-
22	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
23	67764-1		Support, Crisper Shelf	10			$ 8.05
24	69653-1		Shelf, Crisper	10	Appelez-nous	-
24	69651-1		Shelf, Crisper	10	Appelez-nous	-
25	69654-1		Pan, Crisper (lower)	10	Appelez-nous	-
26	69658-2		Front, Crisper Pan	10	Appelez-nous	-
27	69666-15		Insert, Crisper Front	10	Appelez-nous	-
