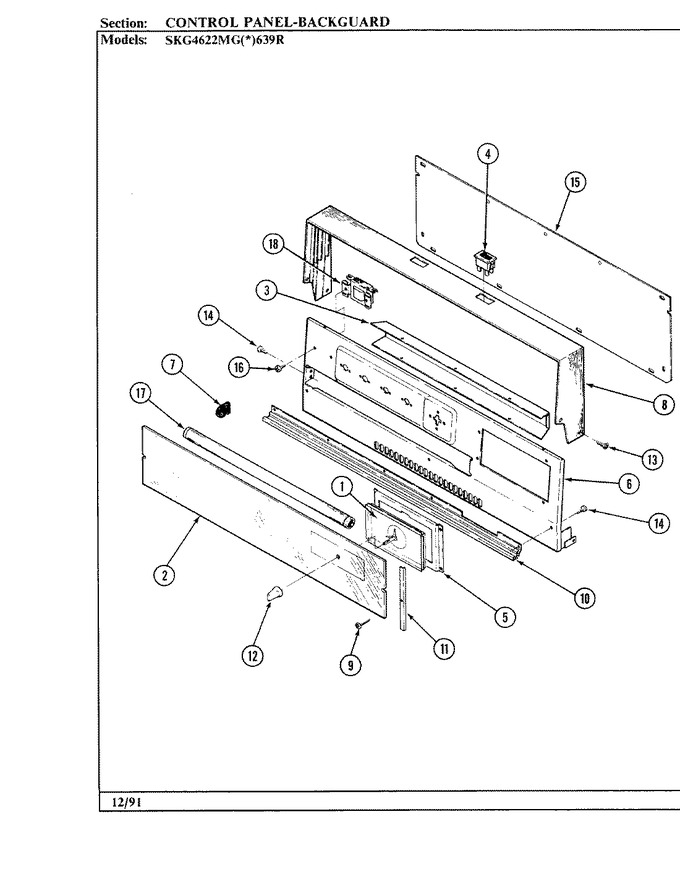

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5476A038-60 | Clock | 01 |
|
- | ||||
| 2 | 7910P002-60 | Glass, Backguard | 01 |
|
- | ||||
| 3 | 3602F002-51 | Reflector - Oven Light | 01 |
|
- | ||||
| 4 | 7403P242-60 | Switch, Light | 01 |
|
- | ||||
| 4 | 7403P241-60 | Switch, Light | 01 |
|
- | ||||
| 5 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 5 | 3605F043-80 | Plate, Clock Mntg. | 01 |
|
- | ||||
| 6 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.06 | ||||
| 6 | 7101P069-60 | Screw | 01 |
|
- | ||||
| 6 | 2601W308-90 | Backguard | 01 |
|
- | ||||
| 6 | 7109P033-60 | Lockwasher 1/4`` | 01 |
|
- | ||||
| 7 | 7408P005-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 8 | 3608F030-59 | Extrusion | 01 |
|
- | ||||
| 9 | 7101P008-60 | Screw | 01 |
|
- | ||||
| 10 | 7706P016-60 | Extrusion, Trim | 01 |
|
- | ||||
| 11 | 7720P107-60 | Trim, Glass Retainer | 01 |
|
- | ||||
| 12 | 7711P007-60 | Knob, Clock | 01 |
|
- | ||||
| 13 | 7101P081-60 | Screw | 01 |
|
- | ||||
| 14 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 15 | 4005F395-80 | Cover Bkgd Wire | 01 |
|
- | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 17 | 7407P003-60 | Lamp, Fluorescent | 01 |
|
- | ||||
| 18 | 7412P009-60 | Ballast | 01 |
|
- |
