SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer

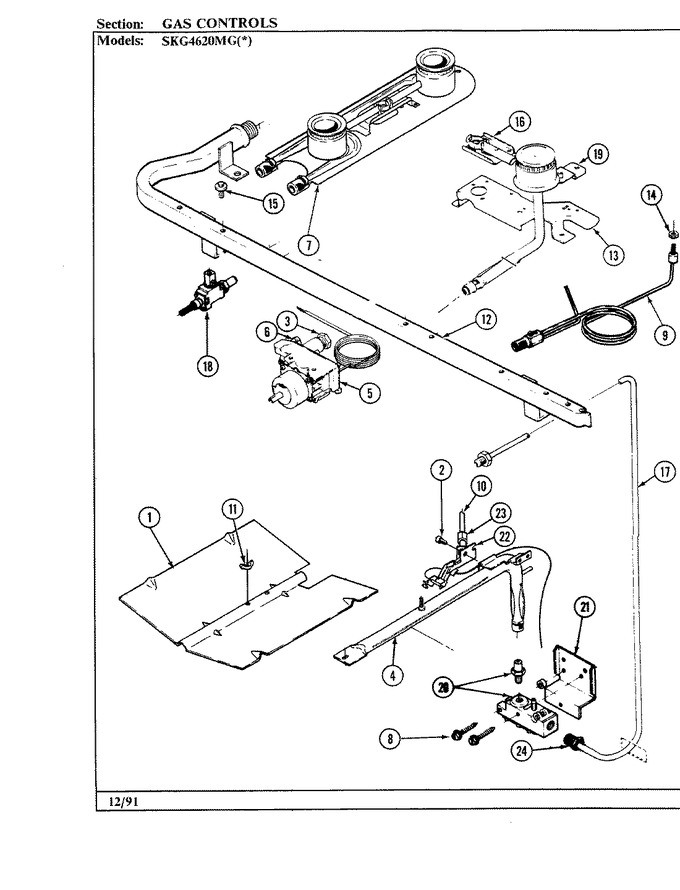

04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F215-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 2 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 3 | 1555258K | 3/8`` Nut & Ferrule | 01 |
|
- | ||||
| 4 | 3403D030-45 | Burner Assy., Oven | 01 |
|
- | ||||
| 5 | 7515P034-60 | Thermostat | 01 |
|
- | ||||
| 5 | 7101P010-60 | Screw, Control | 01 |
|
- | ||||
| 6 | 1555222 | Nut, Loxit (3/16``) | 01 |
|
- | ||||
| 7 | 3412A004-23 | Uni-burner Assy | 01 |
|
- | ||||
| 8 | 7101P025-60 | Screw | 01 |
|
- | ||||
| 9 | 7505P071-60 | Burner, Pilot Griddl | 01 |
|
- | ||||
| 9 | 7505P073-60 | Pilot, Burner (top) | 01 |
|
- | ||||
| 9 | 3807F204-34 | Support, Top Pilot | 01 |
|
- | ||||
| 9 | 3807F069-34 | Support | 01 |
|
- | ||||
| 10 | 3414F062-44 | Tubing, 3/16`` X 54``----na | 01 |
|
- | ||||
| 11 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 12 | 7513P137-60 | Pipe, Manifold | 01 |
|
- | ||||
| 13 | 3807F230-34 | Support, Griddle Burner | 01 |
|
- | ||||
| 14 | 7103P070-60 | Nut, Top Pilot | 01 |
|
- | ||||
| 15 | 7101P044-60 | Screw, Valve | 01 |
|
- | ||||
| 16 | 7506P020-60 | Tube | 01 |
|
- | ||||
| 17 | 3414F100-44 | Tubing | 01 |
|
- | ||||
| 18 | 7502P179-60 | Valve Burner | 01 |
|
- | ||||
| 19 | 7505P001-60 | Burner | 01 |
|
- | ||||
| 20 | 7501P112-60 | Valve, Oven | 01 |
|
- | ||||
| 21 | 3807F418-34 | Support, Oven Valve | 01 |
|
- | ||||
| 22 | 7432P070-60 | Pilot, Oven | 01 |
|
- | ||||
| 23 | 1555261K | Nut & Ferrule (3/16``) | 01 |
|
- | ||||
| 24 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- |
