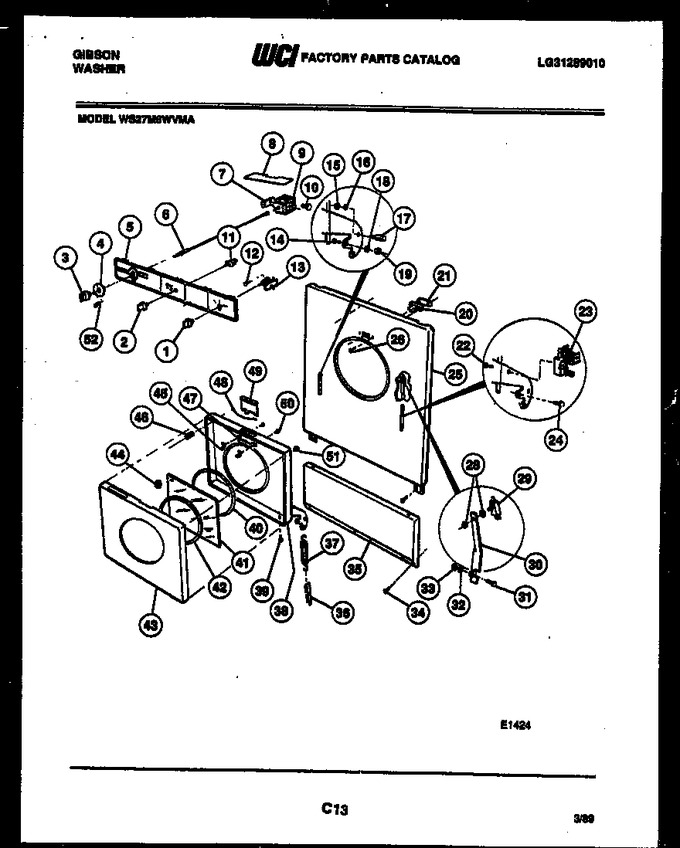

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Q000633726 | Knob-w.l.c. |
|
- | |||||
| 2 | 3281090 | Knob |
|
- | |||||
| 3 | Q000621212 | Knob-timer |
|
- | |||||
| 4 | 3202955 | Dial |
|
- | |||||
| 5 | 3204504 | Panel-control |
|
- | |||||
| 6 | 3202968 | Rod-w/clamp |
|
- | |||||
| 7 | 3202969 | Bracket-timer |
|
- | |||||
| 8 | 3202971 | Cover-timer |
|
- | |||||
| 9 | 3202973 | Timer |
|
- | |||||
| 10 | Q000435103 | Screw (2) |
|
- | |||||
| 11 | 3202977 | Switch-temp Select |
|
- | |||||
| 12 | Q000435056 | Screw (2) |
|
- | |||||
| 13 | 3202978 | Switch W.l.c. |
|
- | |||||
| 14 | Q000007617 | Screw |
|
- | |||||
| 15 | Q000443003 | Nut |
|
- | |||||
| 16 | Q000402801 | Washer |
|
- | |||||
| 17 | Q000600102 | Stud |
|
- | |||||
| 18 | Q000402801 | Washer |
|
- | |||||
| 19 | Q000443003 | Nut |
|
- | |||||
| 20 | Q000091191 | Catch-door |
|
- | |||||
| 21 | Q000500531 | Nut-strip |
|
- | |||||
| 22 | Q000406801 | Screw |
|
- | |||||
| 23 | Q000129823 | Solenoid |
|
- | |||||
| 24 | Q000007617 | Screw-hinge |
|
- | |||||
| 25 | 3204505 | Panel-front-almd |
|
- | |||||
| 25 | 3203053 | Panel-front-white |
|
- | |||||
| 26 | 08015286 | Screw |
|
- | |||||
| 28 | Q000501450 | Locknut |
|
- | |||||
| 29 | Q000184701 | Switch-door |
|
- | |||||
| 30 | Q000273137 | Arm-door Switch |
|
- | |||||
| 31 | Q000503596 | Screw |
|
- | |||||
| 32 | Q000402801 | Washer |
|
- | |||||
| 33 | Q000402601 | Nut |
|
- | |||||
| 34 | Q000500718 | Screw |
|
- | |||||
| 35 | Q000600564 | Panel-service-white |
|
- | |||||
| 35 | Q000602004 | Panel-service (almd) |
|
- | |||||
| 36 | 3261082 | Bracket-spring |
|
- | |||||
| 37 | Q000011943 | Spring |
|
- | |||||
| 38 | 08015269 | Panel-i.d.-white |
|
- | |||||
| 38 | Q000184777 | Panel-id (almd) |
|
- | |||||
| 39 | C000505617 | Screw |
|
- | |||||
| 40 | Q000147492 | Gasket-door |
|
- | |||||
| 41 | Q000017901 | Glass |
|
- | |||||
| 42 | Q000183302 | Gasket |
|
- | |||||
| 43 | Q000088956 | Panel-o.d.-white |
|
- | |||||
| 43 | Q000603331 | Panel-od (almd) |
|
- | |||||
| 44 | Q000040120 | Spacer |
|
- | |||||
| 45 | Q000501661 | Clip (2) |
|
- | |||||
| 46 | Q000040118 | Spacer (2) |
|
- | |||||
| 47 | Q000600037 | Guide |
|
- | |||||
| 48 | Q000062204 | Bar |
|
- | |||||
| 49 | Q000151771 | Latch Bar |
|
- | |||||
| 50 | Q000403103 | Screw |
|
- | |||||
| 51 | Q000013435 | Bumper |
|
- | |||||
| 52 | 3202946 | Spring |
|
- | |||||
| *14794 | 3202980 | Harness - Door Switch |
|
- | |||||
| NI | 0001825642 | Screw-solenoid (non-illustrated) |
|
- | |||||
| NI | Q000505564 | Screw |
|
- | |||||
| NI | Q000435056 | Screw-temp Select (non-illustrated) |
|
- |
