Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Q000137158 Bearing & Seal Kit Appelez-nous -
2 Q000009303 Seal Appelez-nous -
3 Q000500961 Bearing Appelez-nous -
4 Q000501341 Snap Ring Appelez-nous -
5 3203014 Pulley Appelez-nous -
6 3203015 Lock Washer Appelez-nous -
7 3203016 Bolt Appelez-nous -
8 3203017 Washer Appelez-nous -
9 3203018 Belt-drive Appelez-nous -
10 3203017 Washer Appelez-nous -
11 Q000501083 Nut (2) Appelez-nous -
12 3203019 Bushing Appelez-nous -
13 3203037 Motor-main Appelez-nous -
14 3203017 Washer (4) Appelez-nous -
15 3203036 Bolt (2) Appelez-nous -
16 3203019 Bushing Appelez-nous -
17 Q000504893 Clamp Appelez-nous -
18 3203034 Spacer (2) Appelez-nous -
19 3203033 Air Bell Appelez-nous -
20 Q000504893 Clamp Appelez-nous -
21 3203035 Hose-sump Appelez-nous -

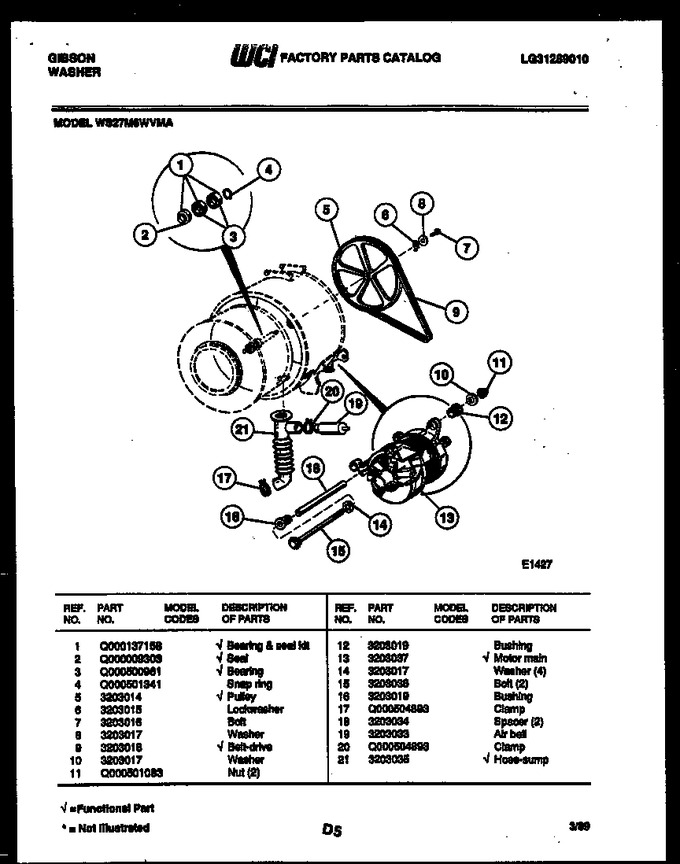

    View Diagram in Separate Window     Print Icon   Print Part List
