View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

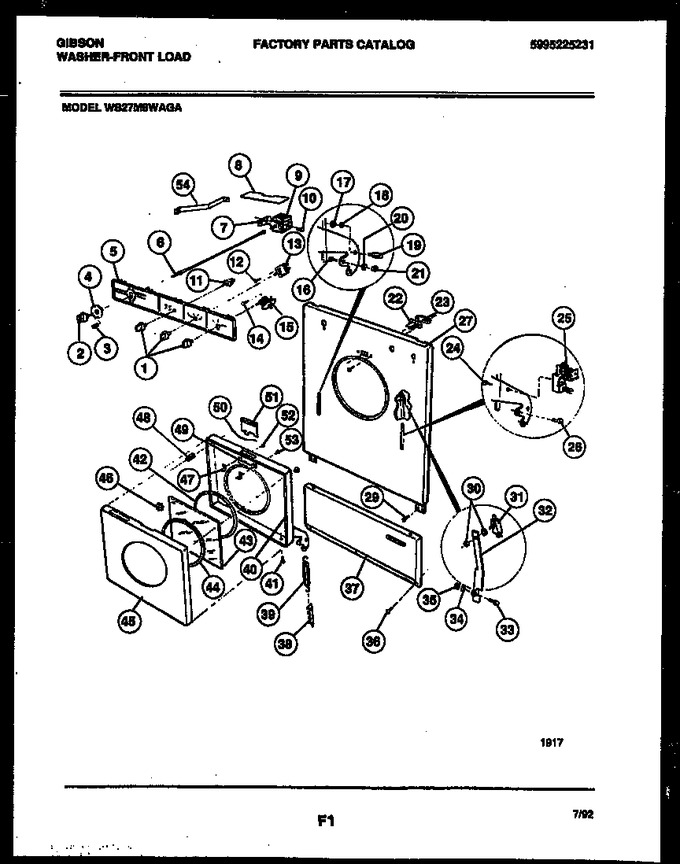

02 - Control And Door Parts
03 - Cabinet Parts
04 - Tub And Components
05 - Drive Components
06 - Counterweights
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303290981 | Knobs - Switches (3) |
|
- | |||||
| 2 | 5308010887 | Knob - Timer |
|
$ 73.92 | |||||
| 3 | 5303202946 | Spring |
|
- | |||||
| 4 | 5303202955 | Dial - Timer |
|
- | |||||
| 5 | 131006100 | Panel- Control |
|
- | |||||
| 6 | 5303286609 | Rod W/clamp |
|
- | |||||
| 7 | 3202969 | Bracket-timer |
|
- | |||||
| 8 | 5303286610 | Cover-timer |
|
- | |||||
| 9 | 5303208738 | Timer |
|
$ 378.21 | |||||
| 10 | 08015356 | Screw (2) |
|
- | |||||
| 11 | 5303202976 | Switch-cycle Signal |
|
- | |||||
| 12 | 3281092 | Screw (2) |
|
- | |||||
| 13 | 5303202977 | Switch-temperature |
|
- | |||||
| 14 | 5303281035 | Screw (2) |
|
- | |||||
| 15 | 5303202978 | Switch-water Level |
|
- | |||||
| 16 | 3261026 | Screw |
|
- | |||||
| 17 | 5303269641 | Nut |
|
- | |||||
| 18 | 5300402801 | Washer |
|
- | |||||
| 19 | 3261025 | Stud |
|
- | |||||
| 20 | 5300402801 | Washer |
|
- | |||||
| 21 | 5303269641 | Nut |
|
- | |||||
| 22 | 5303261023 | Catch-door |
|
- | |||||
| 23 | 5300500531 | Nut-strip |
|
- | |||||
| 24 | 5300516984 | Screw |
|
- | |||||
| 25 | 5303261011 | Solenoid |
|
- | |||||
| 26 | 3261026 | Screw-hinge |
|
- | |||||
| 27 | 3203053 | Panel-front-white |
|
- | |||||
| 27 | 3204505 | Panel-front-almond |
|
- | |||||
| 29 | 5303010202 | Screw(2) |
|
$ 5.15 | |||||
| 30 | 08015344 | Locknut |
|
- | |||||
| 31 | 5300184701 | Switch-door |
|
- | |||||
| 32 | 3261013 | Arm-door Switch |
|
- | |||||
| 33 | 08015362 | Screw |
|
- | |||||
| 34 | 5300402801 | Washer |
|
- | |||||
| 35 | 5300402601 | Nut |
|
- | |||||
| 36 | 218362501 | Screw (Replaces: 5303209506) |
|
$ 12.05 | |||||
| 37 | 5303261017 | Panel-service-white |
|
- | |||||
| 37 | 5300602004 | Panel-service-almond |
|
- | |||||
| 38 | 3261082 | Bracket-spring |
|
- | |||||
| 39 | 5300011943 | Spring |
|
- | |||||
| 40 | 5308015269 | Panel-inner Door-white |
|
- | |||||
| 40 | 3261029 | Panel-inner Door-almond |
|
- | |||||
| 41 | 08015347 | Screw (3) |
|
- | |||||
| 42 | 5303261021 | Gasket-door |
|
- | |||||
| 43 | 3161042 | Glass |
|
- | |||||
| 44 | 5300183302 | Gasket |
|
- | |||||
| 45 | 08015406 | Panel-outer Door-almond |
|
- | |||||
| 45 | 5308015161 | Panel-outer Door White |
|
- | |||||
| 46 | 5308015122 | Spacer (4) |
|
- | |||||
| 47 | 5308015346 | Clip (2) |
|
- | |||||
| 48 | 5308015121 | Spacer (2) |
|
- | |||||
| 49 | 5308015383 | Glide |
|
- | |||||
| 50 | 5300062204 | Bar |
|
- | |||||
| 51 | 5308015229 | Latch Bar |
|
- | |||||
| 52 | 08015286 | Screw (2) |
|
- | |||||
| 53 | 5308001717 | Bumper |
|
- | |||||
| 54 | 131004700 | Support=timer Bracket |
|
- | |||||
| *55030 | 5303281096 | Screw-solenoid (2) |
|
- | |||||
| *55030 | 5308001853 | Screw-temp.-select Switch |
|
- | |||||
| *55030 | 3203863 | Screw - Bracket To Timer |
|
- | |||||
| *55030 | 3202980 | Harness - Door Switch |
|
- | |||||
| NI | 08015286 | Screw |
|
- |
