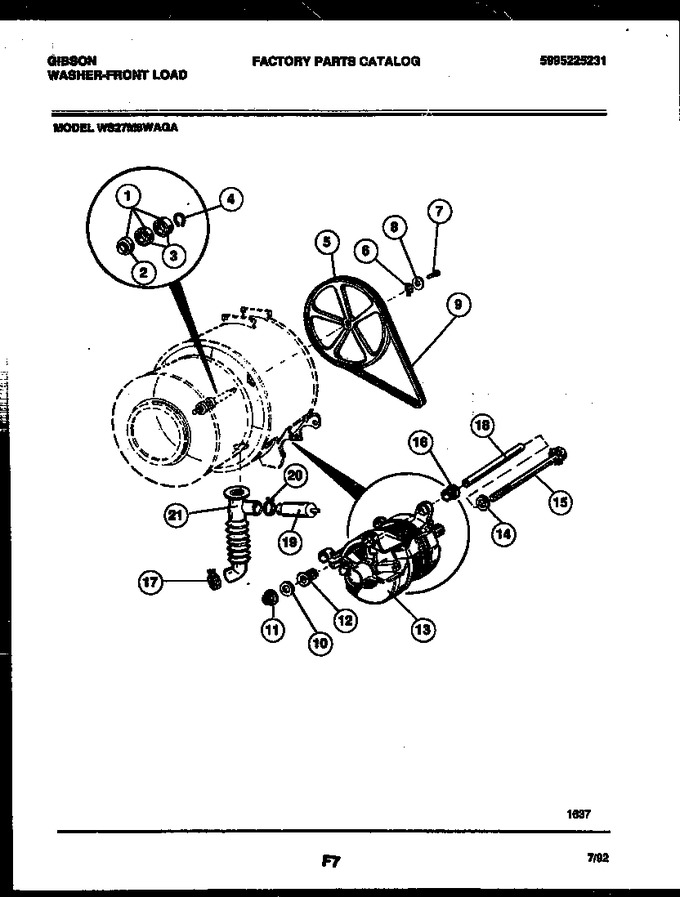

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300137158 | Bearing & Seal Kit |
|
- | |||||
| 2 | 5308002829 | Seal (Replaces: 5308015092) |
|
- | |||||
| 3 | 5308015338 | Bearing |
|
- | |||||
| 4 | 5303286621 | Snap Ring |
|
- | |||||
| 5 | 5303203014 | Pulley |
|
- | |||||
| 6 | 5303203015 | Lockwasher |
|
- | |||||
| 7 | 5308015629 | Bolt |
|
- | |||||
| 8 | 3205718 | Washer |
|
- | |||||
| 9 | 5303203018 | Belt-drive |
|
$ 74.66 | |||||
| 10 | 3205718 | Washer (2) |
|
- | |||||
| 11 | 5308001883 | Nut (2) |
|
- | |||||
| 12 | 5303203019 | Bushing |
|
- | |||||
| 13 | 5303203037 | Motor-main |
|
- | |||||
| 14 | 3205718 | Washer (2) |
|
- | |||||
| 15 | 3203036 | Bolt (2) |
|
- | |||||
| 16 | 5303203019 | Bushing |
|
- | |||||
| 17 | 5303161404 | Clamp |
|
- | |||||
| 18 | 5303286622 | Spacer (2) |
|
- | |||||
| 19 | 5303203033 | Air Bell |
|
- | |||||
| 20 | 5303161404 | Clamp |
|
- | |||||
| 21 | 5303203035 | Hose-sump |
|
- | |||||
| *55042 | 3281120 | Ground Screw-motor |
|
- |
