SELECT A DIAGRAM

01 - Rear And Side Panel, Lit/optional

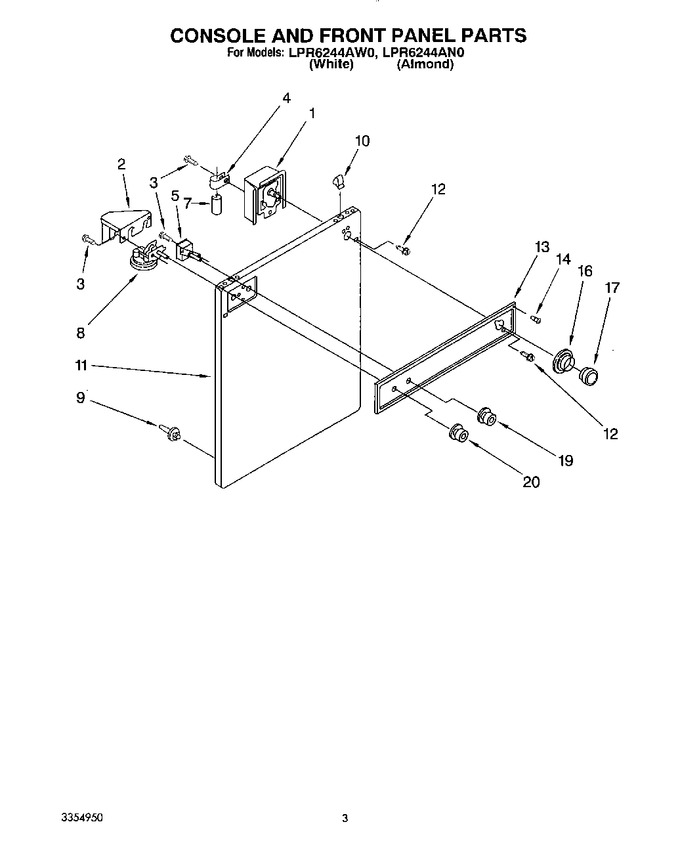

02 - Console And Front Panel


03 - Washer Top And Lid


04 - Wiring Harness


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Optional Permanent Installation Kit


08 - Machine Base


09 - Brake, Clutch, Gearcase, Motor And Pump


10 - Gearcase


11 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3347793		Timer, 60 Hz. (serviced As A Complete Assembly. Timer Motor Is Non Serviceable.)				$ 377.46
2	388194		Shield, Control		Appelez-nous	-
3	339607		Screw, No.8 X 5/16		Appelez-nous	-
4	357030		Clamp, Capacitor				$ 18.98
5	387909		Switch, Water Temperature		Appelez-nous	-
7	WP8572717		Capacitor, Motor Start (mfd 189, 110 Volts)   (Replaces: 357021)			Immediately	$ 72.13
8	64055		Switch, Water Level		Appelez-nous	-
9	98669		Locator, Top (2)				$ 12.03
10	356422		Lock, Front Top (2)		Appelez-nous	-
11	63610		Panel, Front (almond Model)		Appelez-nous	-
11	63609		Panel, Front (white Model)		Appelez-nous	-
12	WP356418		Screw, Timer Mounting   (Replaces: 96435)				$ 7.13
13	387676		Panel, Console (almond Model)		Appelez-nous	-
13	387675		Panel, Console (white Model)		Appelez-nous	-
14	694024		Rivet, Console Mounting (2)		Appelez-nous	-
16	3358278		Dial, Timer (almond Model)		Appelez-nous	-
16	3358277		Dial, Timer (white Model)		Appelez-nous	-
17	3392698		Knob, Timer (white Model)		Appelez-nous	-
17	3392699		Knob, Timer (almond Model)		Appelez-nous	-
19	3357992		Knob & Skirt (water Temperature) (white Model)		Appelez-nous	-
19	3357993		Knob & Skirt (water Temperature) (almond Model)		Appelez-nous	-
20	696348		Knob & Skirt (water Level) (almond Model)		Appelez-nous	-
20	696347		Knob & Skirt (water Level) (white Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
