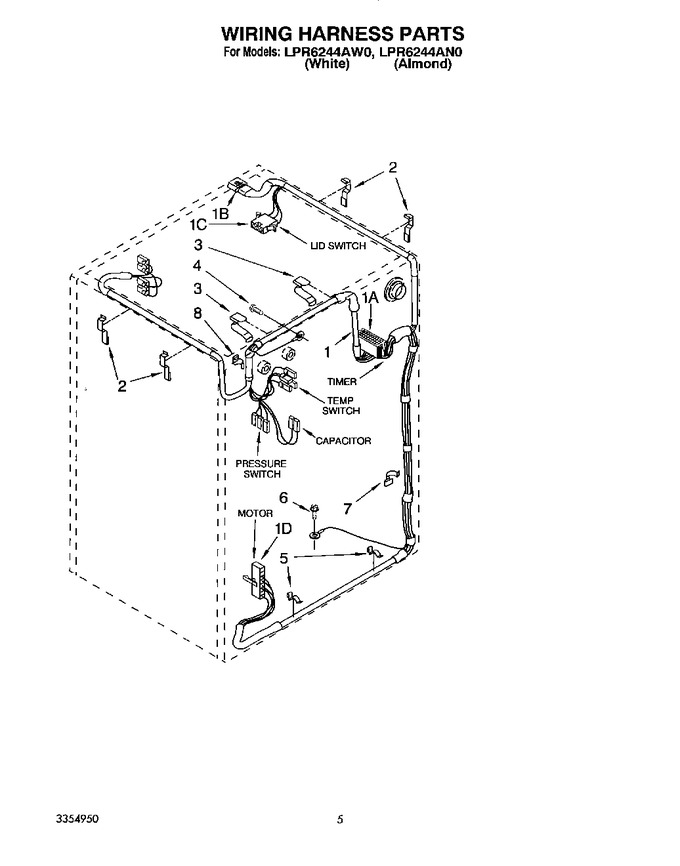

04 - Wiring Harness


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Optional Permanent Installation Kit


08 - Machine Base


09 - Brake, Clutch, Gearcase, Motor And Pump


10 - Gearcase


11 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	387711		Harness, Cabinet Wiring (includes Illus. 1a, 1b, 1c & 1d)		Appelez-nous	-
2	64227		Clip, Harness (4)		Appelez-nous	-
3	387668		Clip, Harness (2)		Appelez-nous	-
4	3347107		Screw, 8-18 X 5/16		Appelez-nous	-
5	WP90016		Clip, Harness (2)   (Replaces: 90016)				$ 10.19
6	WP681414		Screw, 10-32 X 1/2 (grounding)   (Replaces: 690989)			Immediately	$ 7.07
7	8528351		Clip, Harness (2)   (Replaces: 693193)		Appelez-nous	-
8	64162		Clip, Harness		Appelez-nous	-
1A	W10876590		Block, Timer Disconnect (connects To Timer)   (Replaces: 352089)				$ 11.48
1B	353424		Plug, Terminal (3 Way) (connects To Power Cord)				$ 18.95
1C	62888		Plug, Terminal (3 Way) (connects To Lid Switch Harness)				$ 37.28
1D	WP62505		Block, Disconnect (connects To Motor)   (Replaces: 62505)				$ 21.35
