Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7902P379-60 Glass, Control Panel 10 Appelez-nous -
2 7731P082-60 Knob, Therm/burner (blk) 10 Appelez-nous -
3 3605F187-80 Plate, Control 10 Appelez-nous -
3 7101P158-60 Screw, Bkgd Trim Bottom 10 Appelez-nous -
3 8010P085-60 Spacer, Rubber 10 Appelez-nous -
4 7403P019-60 Switch, Light 10 Appelez-nous -
4 7403P096-60 Switch, Hi-limit 10 Appelez-nous -
5 WP7101P126-60 Screw   (Replaces: 7101P061-60) 10 In-Stock Immediately $ 6.85

5 7101P158-60 Screw, Bkgd Trim Bottom 10 Appelez-nous -
5 7720P165-60 Trim, Control Panel 10 Appelez-nous -
5 3807F133-34 Support 10 Appelez-nous -
5 3807F039-34 Support 10 Appelez-nous -
6 7214P001-60 Sleeve, Switch 10 Appelez-nous -
6 7401P018-60 Block 10 Appelez-nous -
7 7101P279-60 Screw W/washer 10 Appelez-nous -
7 7404P103-60 Thermostat 10 Appelez-nous -
8 7711P008-60 Knob, Light Switch 10 Appelez-nous -
9 7740P018-60 Bezel, Knob 10 Appelez-nous -
10 WP74004005 Screw   (Replaces: 7101P076-60) 10 Special Order $ 6.95

10 3801F111-51 Bracket, Indicator Light 10 Appelez-nous -
11 5195D123-60 Harness, Upper Oven 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

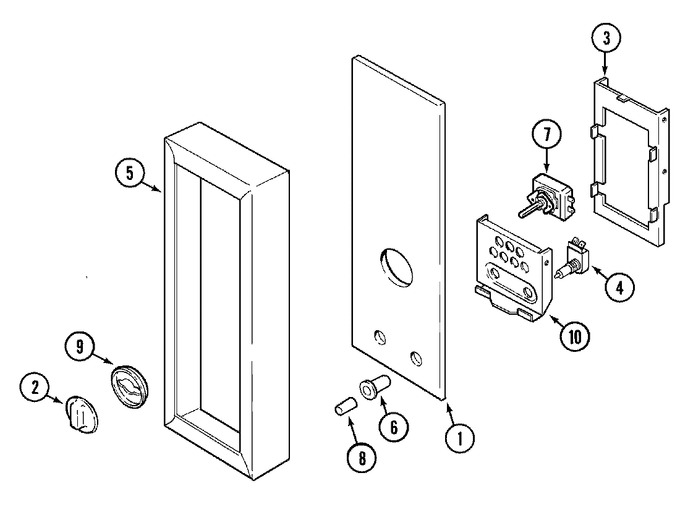

Diagram for 7458XVA
