Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8016P014-60 Glide, Main Top 10 Appelez-nous -
2 7740P058-60 Bezel, Knob (blk) 10 Special Order $ 24.44

3 7112P087-60 Clip, Top Locking 10 Appelez-nous -
4 74002299 Clock (blk) 14 Appelez-nous -
4 74002886 Clock (blk) 24 Appelez-nous -
4 3801F349-51 Bracket, Clock 10 Appelez-nous -
4 W11233072 Screw (8bx3/8-ni)   (Replaces: 7101P338-60) 10 In-Stock Immediately $ 12.62

4 7601P276-60 Clock (blk) 10 Appelez-nous -
4 WP59002061 Screw (6abx38-zn)   (Replaces: 7101P077-60) 10 Special Order $ 6.98

5 74001059 Grate (blk) 20 Appelez-nous -
5 74001059 Grate (blk) 28 Appelez-nous -
5 2003W027-00 Grate (blk) 10 Appelez-nous -
5 74001653 Grate (blk) 26 Appelez-nous -
6 WP7711P492-60 Knob, Clock (blk)   (Replaces: 7711P431-60) 10 Special Order $ 12.13

7 WP74003781 Knob, Valve (blk)   (Replaces: 7733P084-60) 10 Special Order $ 15.89

7 7214P041-60 Sleeve, Wire Protector 10 Appelez-nous -
8 7403P067-60 Switch, Rocker (blk) 10 Special Order $ 91.35

9 2001F117-84 Top, Main (alm) 10 Appelez-nous -
9 2001F117-81 Top, Main (wht) 10 Appelez-nous -
10 7103P120-60 Nut, Speed 10 Appelez-nous -
10 74001535 Panel, Manifold (blk) 10 Appelez-nous -
10 74003920 Panel, Manifold (blk) 16 Appelez-nous -
10 74002588 Cover, Manifold (rear) 15 Appelez-nous -
10 74001542 Cover, Manifold (rear) 10 Appelez-nous -
10 W11233072 Screw, Housing   (Replaces: 7118P015-60) 10 In-Stock Immediately $ 12.62

11 74002304 Block, Disconnect 10 Appelez-nous -
11 74001575 Harness, Control/relay 10 Appelez-nous -
11 74002303 Block, Disconnect 10 Appelez-nous -
11 5125A312-60 Harness, Loose/burner Box 10 Appelez-nous -
11 12001323 Wire/terminal Kit 10 Appelez-nous -
11 5170P228-60 Harness, Sensor & Lock 10 Appelez-nous -
12 8113P066-60 Manual, Use & Care 10 Appelez-nous -
13 16000329 Guide, Quick Ref. - Magic Chef 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

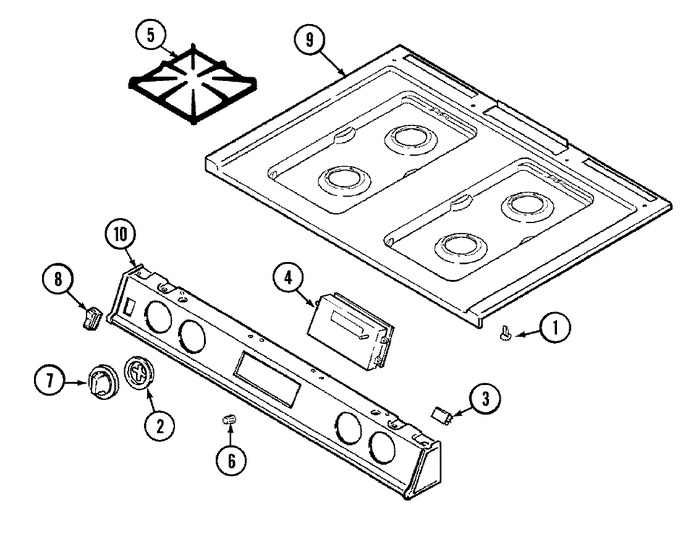

Diagram for 7458XVA
