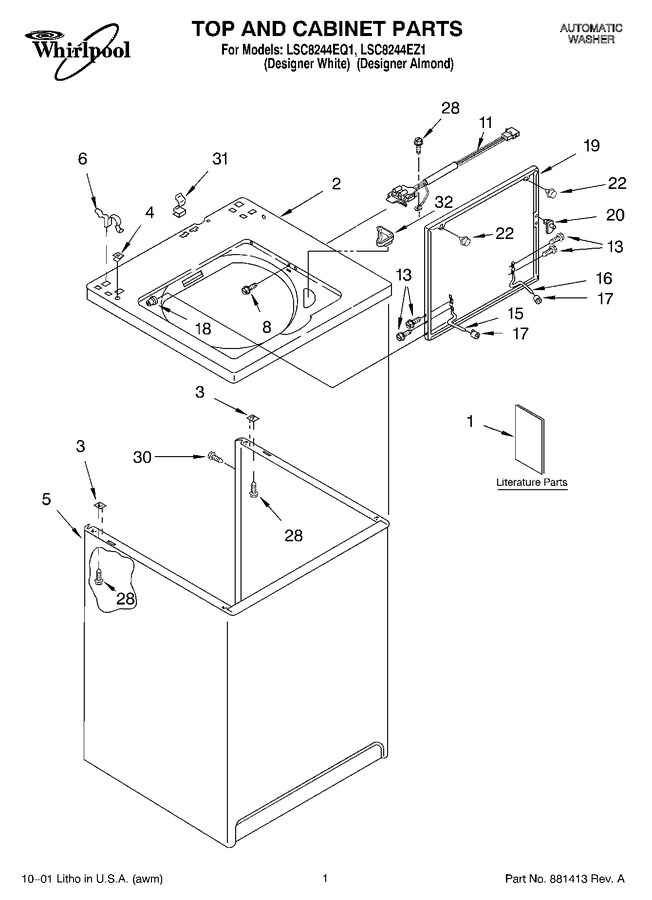

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3363572 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3954770 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3952817 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3954863 | Literature Parts (energy Guide) |
|
- | |||||
| 2 | 3949477 | Top (almond) |
|
- | |||||
| 2 | 3949476 | Top (white) |
|
$ 136.44 | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 6.92 | ||||
| 4 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 6.65 | |||||
| 5 | 63425 | Cabinet (almond) |
|
- | |||||
| 5 | 63424 | Cabinet (white) |
|
$ 333.02 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.02 | ||||
| 8 | WP3356311 | Screw & Washer, Lid Switch (2) (Replaces: 3356311) |
|
$ 6.98 | |||||
| 11 | 3949247V | Switch, Lid (Replaces: 3949237) |
|
Immediately | $ 45.78 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 3351355) |
|
Immediately | $ 6.47 | ||||
| 15 | WP54584 | Hinge, Lid (l.h.) (Replaces: 54584) |
|
$ 30.09 | |||||
| 16 | WP54583 | Hinge, Lid (r.h.) (Replaces: 54583) |
|
$ 26.60 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 19 | 3361400 | Lid (white) |
|
- | |||||
| 19 | 3361401 | Lid (almond) |
|
- | |||||
| 20 | WP358684 | Strike, Lid Switch (Replaces: 358684) |
|
Immediately | $ 6.90 | ||||
| 22 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 7.14 | ||||
| 28 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.04 | |||||
| 30 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 31 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.19 | |||||
| 32 | WP3362952 | Dispenser, Bleach (Replaces: 3362952) |
|
Immediately | $ 10.88 | ||||
| LIT4313896 | Manual, (washer) |
|
- |
