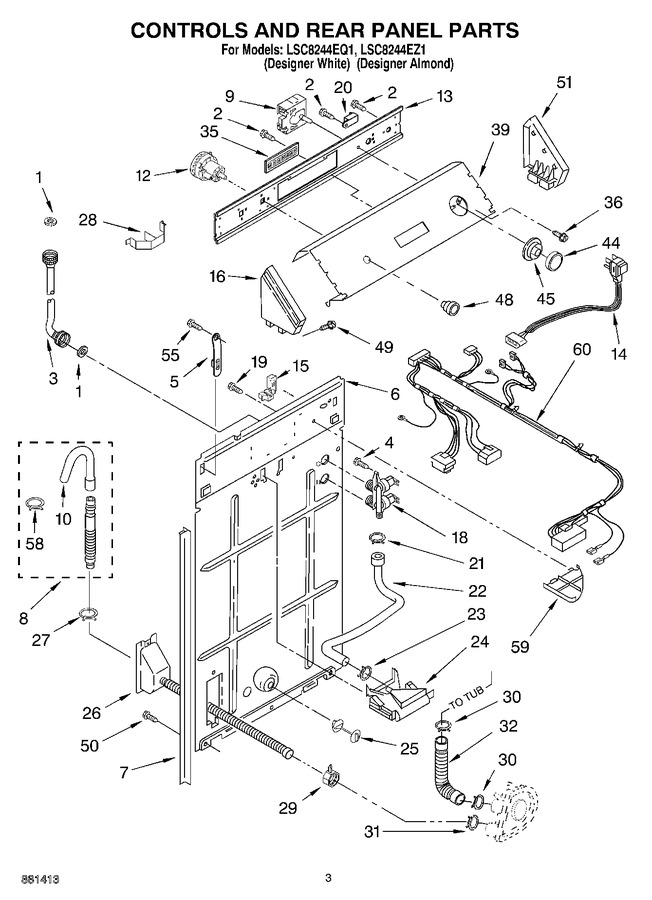

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 6.93
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
3	WP89503		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 3949375)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) (red Coupler)   (Replaces: 3949374)			Immediately	$ 21.68
4	WP9740848		Screw, 8-18 X 3/8   (Replaces: 9740848)			Immediately	$ 7.07
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 7.00
6	8528062		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 33.20
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
9	3948171		Timer, Control (60 Hz.) (motor Not A Service Part)				$ 212.78
10	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 83.88
12	W10337780		Switch, Water Level   (Replaces: 3366847)			Immediately	$ 79.38
13	3950194		Bracket, Control		Appelez-nous	-
14	W10820044		Cord, Power   (Replaces: 3948063)				$ 128.46
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
16	3358529		Cap, End (l.h.) (almond)		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 49.57
19	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3351614)			Immediately	$ 6.26
20	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 3357328)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.01
26	WPW10358149		Anchored Drain Hose Assembly   (Replaces: 8317940)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 7.67
28	8055003		Clip, Harness & Pressure Hose				$ 36.24
29	3976395		Clamp, Hose				$ 11.96
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.03
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 24.01
35	3948147		Switch, Touch-pad (8) (white)		Appelez-nous	-
35	3948148		Switch, Touch-pad (8) (almond)		Appelez-nous	-
36	WP356418		Screw, Timer Mounting   (Replaces: 96435)				$ 7.13
39	3948298		Panel, Console (almond)		Appelez-nous	-
39	3948297		Panel, Console (white)		Appelez-nous	-
44	WP3364293		Knob, Timer (white)   (Replaces: 3364291)			Immediately	$ 53.51
44	WP3364293		Knob, Timer (almond)   (Replaces: 3364293)			Immediately	$ 53.51
45	280193		Dial, Timer (almond)   (Replaces: 3951054)				$ 51.36
45	3951053		Dial, Timer (white)		Appelez-nous	-
48	3950760		Knob, Control (almond)		Appelez-nous	-
48	WP3957796		Knob, Control (white)   (Replaces: 3950759)			Immediately	$ 49.35
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3358514		Cap, End (r.h.) (almond)		Appelez-nous	-
51	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
55	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 6.80
59	3348424		Sheild, Suds		Appelez-nous	-
60	3952705		Harness, Wiring		Appelez-nous	-
