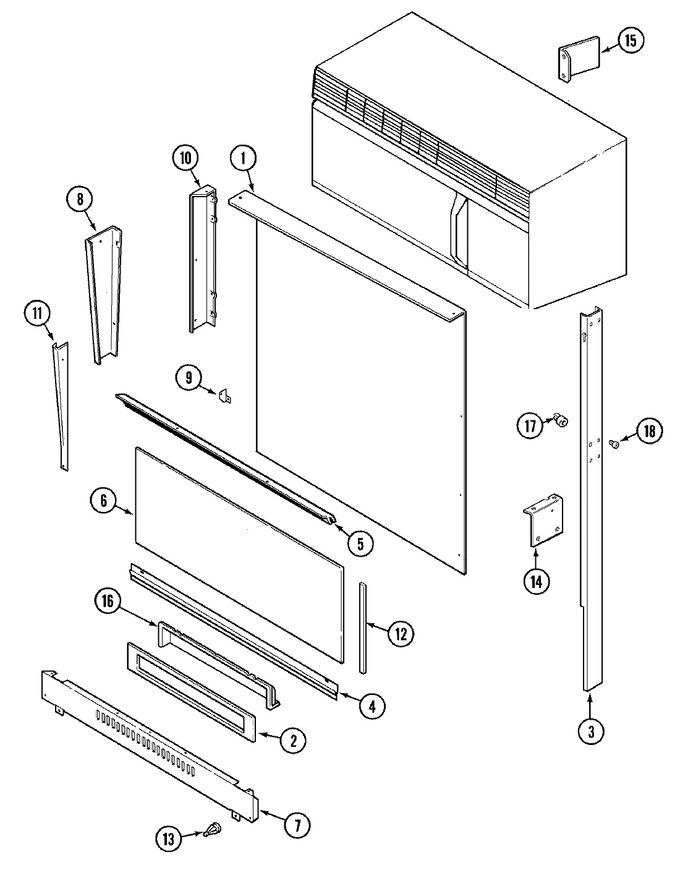

01 - Body
02 - Body (upr)
03 - Door/drawer
04 - Gas Controls
05 - Microwave
06 - Oven/base
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 4002F183-80 | Cover, Back | 10 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 2 | 7201P026-60 | Gasket, Flue Box | 10 |
|
- | ||||
| 3 | 3818F057-51 | Channel, Oven Support | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 7756P089-60 | Extrusion, Glass Btm | 10 |
|
- | ||||
| 5 | 74002286 | Trim, Retainer (top) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 74002287 | Glass, Backsplash (wht) | 10 |
|
- | ||||
| 7 | 2620F057-81 | Panel, Lower (wht) | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74002290 | Panel, Upper Side (rt-chr) | 10 |
|
- | ||||
| 8 | 74002289 | Panel, Upper Side (lt-chr) | 10 |
|
- | ||||
| 8 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 7118P017-60 | Screw | 10 |
|
- | ||||
| 9 | 3804F043-45 | Bracket, Side Panel (lt) | 10 |
|
- | ||||
| 9 | 3804F044-45 | Bracket, Side Panel (rt) | 10 |
|
- | ||||
| 10 | 74002292 | Panel, Upper Side (lt-chr) | 10 |
|
- | ||||
| 10 | 74002291 | Panel, Upper Side (rt-chr) | 10 |
|
- | ||||
| 10 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 7720P167-60 | Trim, Side Panel (rt) | 10 |
|
- | ||||
| 11 | 7720P166-60 | Trim, Side Panel (lt) | 10 |
|
- | ||||
| 12 | 74002293 | Trim, Glass Retainer | 10 |
|
- | ||||
| 12 | 7101P075-60 | Screw | 10 |
|
- | ||||
| 13 | 7105P002-60 | Support, Main Top | 10 |
|
- | ||||
| 13 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 3801F301-51 | Bracket, Reinforcement | 10 |
|
- | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74002314 | Shield, Wire (mw) | 10 |
|
- | ||||
| 16 | 4006F096-19 | Box, Flue | 10 |
|
- | ||||
| 17 | 7105P003-60 | Spacer, Upper Side | 10 |
|
- | ||||
| 18 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 |
