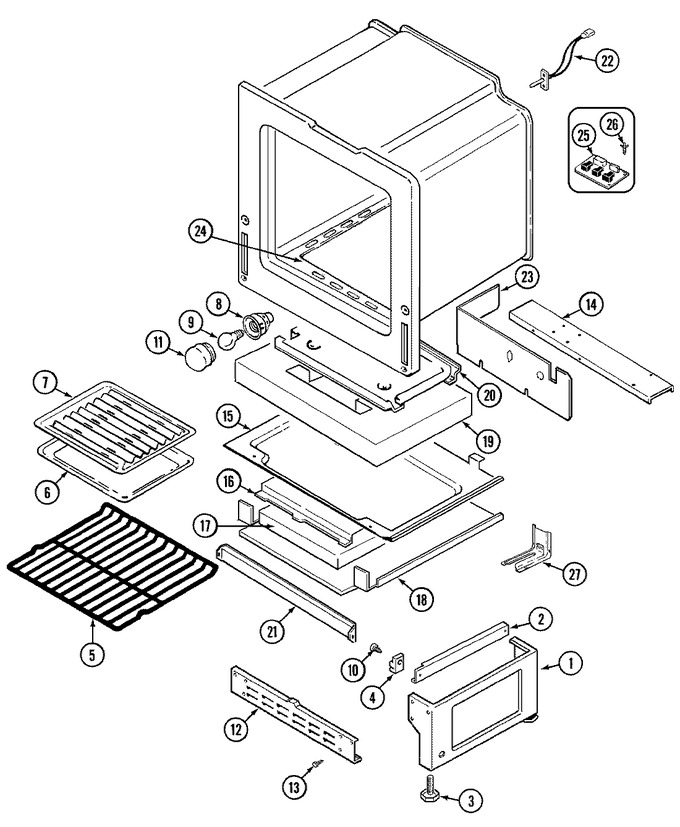

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003003		Pedestal, Side	16	Appelez-nous	-
1	4020W015-80		Pedestal, Sides	10	Appelez-nous	-
2	3406F028-51		Runner, Drawer	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	74001311		Leg, Leveling	10	Appelez-nous	-
3	W11665456		Leg, Leveling   (Replaces: 74002373)	16		Immediately	$ 25.30
4	74002312		Support, Drawer	10			$ 27.09
5	WPW10282492		Rack, Oven   (Replaces: 7801P047-60)	10		Immediately	$ 65.15
6	Y3401F02019		Pan, Broil	10	Appelez-nous	-
7	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
8	74003125		Receptacle, Bulb	25	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	25		Immediately	$ 12.62
8	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	10		Immediately	$ 66.10
9	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
10	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
11	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	10		Immediately	$ 71.93
12	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	3807F476-51		Support, Valve & Regulator	10	Appelez-nous	-
15	3804F112-51		Retainer, Insulation	10	Appelez-nous	-
16	3604F204-51		Shield, Heat	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	7002P140-60		Insulation, Drawer & Shield	10	Appelez-nous	-
18	3604F205-51		Shield, Drawer	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
19	4804F014-60		Insulation, Oven Bottom	10	Appelez-nous	-
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	74001651		Pan, Bake Burner	10	Appelez-nous	-
21	74001219		Baffle, Oven Front	12	Appelez-nous	-
21	5504M004-19		Bottom, Oven Assy.	10	Appelez-nous	-
21	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	10			$ 6.47
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
22	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	10		Immediately	$ 41.01
23	4005F429-51		Cover, Valve	10	Appelez-nous	-
23	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
24	3601F239-45		Baffle, Oven Bottom	10	Appelez-nous	-
24	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
25	7428P020-60		Board, Relay	10	Appelez-nous	-
25	74003168		Board, Relay	22	Appelez-nous	-
26	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
26	3807F439-51		Support, Relay Board	10	Appelez-nous	-
26	8004P022-60		Support, Relay Board	10	Appelez-nous	-
27	WP7101P485-60		Screw   (Replaces: 7101P344-60)	10			$ 26.33
27	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74002311)	10		Immediately	$ 4.69
