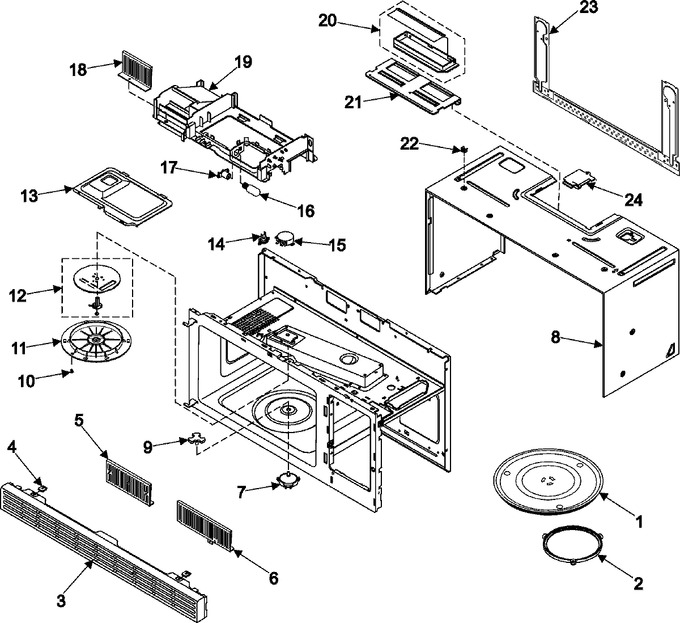

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE74-20016A		Tray, Glass Cooking				$ 110.72
2	DE92-90495A		Assy-guide Roller				$ 42.55
3	DE64-01241A		Grille;smh4150,pc,t2.5,w86.5,-		Appelez-nous	-
4	DE65-00004A		Clip-grille				$ 2.58
5	DE61-00027A		Bracket-grille		Appelez-nous	-
6	DE71-60384A		Cover-front		Appelez-nous	-
7	555555		Motor, Drive   (Replaces: DE31-10172A)				$ 151.94
8	DE70-10017G		Panel-outer		Appelez-nous	-
9	DE67-60012A		Coupler				$ 17.58
10	DE66-20095B		Button-lock				$ 17.58
11	DE71-60121A		Cover-stirrer				$ 16.82
12	DE97-00178B		Assy-stirrer				$ 21.43
13	DE61-50469A		Bracket-duct Upper		Appelez-nous	-
14	555555		Thermostat   (Replaces: DE47-20196A)				$ 151.94
15	DE31-10173A		Motor-drive				$ 54.87
16	4713-001013		Lamp-incandescent			Immediately	$ 18.00
17	DE47-00006A		Holder-lamp				$ 17.58
18	DE61-50542A		Bracket-filter		Appelez-nous	-
19	DE72-50098A		Duct-upper		Appelez-nous	-
20	555555		Assy-hood Damper   (Replaces: DE92-90242A)				$ 151.94
21	DE61-50545A		Bracket-v/t Motor				$ 17.58
22	DE92-90508A		Assy-holder Nut			Immediately	$ 17.58
23	DE97-00258A		Assy-mounting Plate				$ 54.87
24	DE61-50507A		Bracket-power Cord		Appelez-nous	-
