01 - Body/cavity/elements

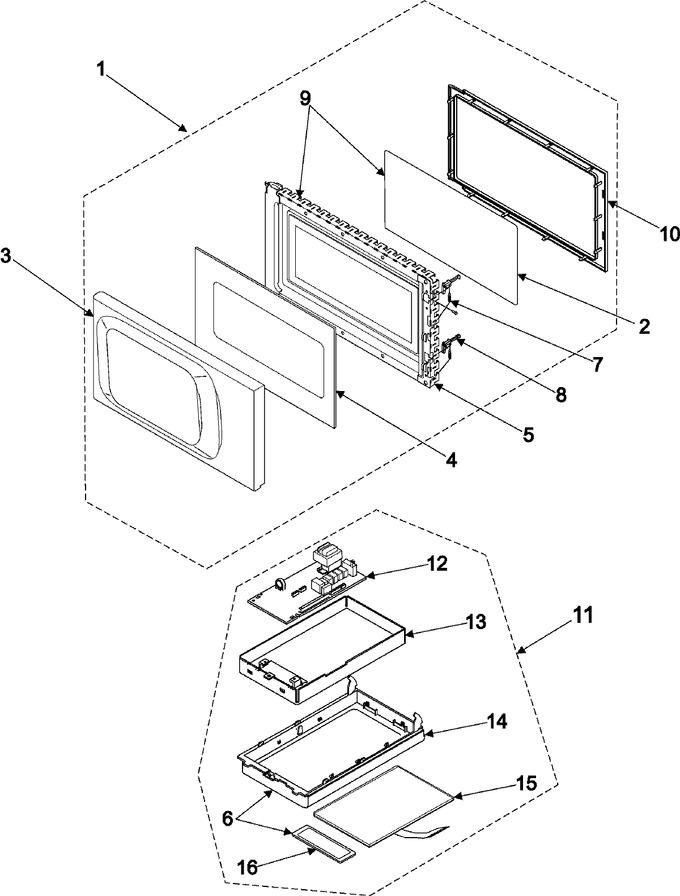

02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-01121A | Assy Door;smh4150,blk,- |
|
$ 133.28 | |||||
| 2 | DE01-00091A | Film-door |
|
$ 13.32 | |||||
| 3 | DE64-01242A | Door-a;smh4150,pc,t2.5,l577,w3 |
|
$ 131.74 | |||||
| 4 | DE64-01279A | Screen-door(b);smh4150,temped |
|
$ 69.67 | |||||
| 5 | DE94-00586H | Assy Door-e;smh4150,blk,coatin |
|
$ 92.93 | |||||
| 6 | DE94-01123A | Assy Control-panel;120v/60hz,s |
|
- | |||||
| 7 | 555555 | Spring-es (Replaces: 6107-001175) |
|
$ 151.94 | |||||
| 8 | DE64-00760A | Key-door |
|
Immediately | $ 19.94 | ||||
| 9 | DE94-00603E | Assy Door-e(sub);smh4150,blk,c |
|
$ 90.74 | |||||
| 10 | DE64-00337A | Door-c |
|
$ 28.04 | |||||
| 11 | DE94-01122A | Assy Control-box;120v/60hz,smh |
|
- | |||||
| 12 | W10127089 | Assy Pcb Parts;smh4150wc/xaa,1 |
|
- | |||||
| 13 | DE61-50525A | Bracket-c/panel |
|
- | |||||
| 14 | DE64-01243A | Control-panel |
|
- | |||||
| 15 | DE34-00206A | Switch Membrane;smh4150bd/xaa, |
|
- | |||||
| 16 | DE64-00766B | Window-display;4150,san,t2.0,w |
|
$ 13.33 |
