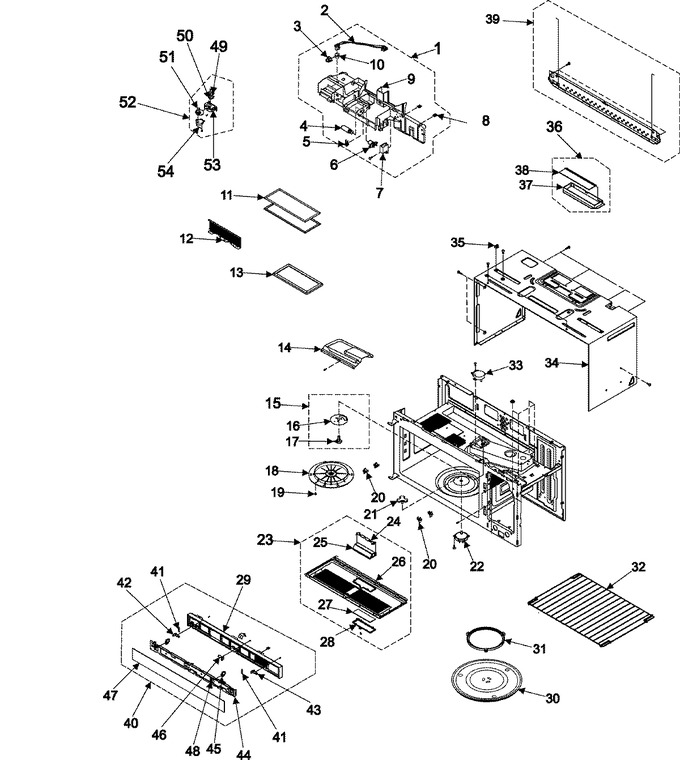

SELECT A DIAGRAM

01 - Body/cavity/elements


02 - Control Panel/door Assembly


03 - Internal Control/latch Asy/base


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	DE39-40678A		Wire Harness-s				$ 29.11
3	DE61-90111A		Holder-sensor				$ 0.88
4	4713-001013		Lamp-incandescent			Immediately	$ 18.00
5	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 151.94
6	DE47-00006A		Holder-lamp				$ 17.58
7	DE59-50002A		Capacitor-motor			Immediately	$ 27.34
8	DE60-30063A		Nut-mounting				$ 11.37
9	DE67-00168A		Duct-upper		Appelez-nous	-
10	DE32-60011A		Sensor-gas			Immediately	$ 86.27
11	DE63-00196A		Filter-air			Immediately	$ 14.77
12	DE63-00138A		Cover-front		Appelez-nous	-
13	555555		Filter-charcoal   (Replaces: DE63-30016D)				$ 151.94
14	DE97-00411A		Assy-bkt Duct Upper		Appelez-nous	-
15	DE97-00367A		Assy-stirrer;smh7175,h/stirrer				$ 20.08
16	DE31-00023A		Blade-stirrer				$ 101.93
17	DE61-00505A		Holder-stirrer				$ 107.95
18	DE71-60121A		Cover-stirrer				$ 16.82
19	DE66-20095B		Button-lock				$ 17.58
20	DE61-00375A		Holder-rack				$ 17.58
21	DE67-00179A		Coupler			Immediately	$ 23.29
22	555555		Motor, Drive   (Replaces: DE31-10172A)				$ 151.94
23	DE97-00360A		Assy-base Bottom;smh7175bc,inc		Appelez-nous	-
24	4713-001013		Lamp-incandescent			Immediately	$ 18.00
25	DE61-00407A		Bracket-bottom Lamp				$ 17.58
26	DE61-00406B		Base-bottom				$ 93.56
27	DE64-00911A		Glass-cooktop Lamp				$ 18.00
28	DE63-00137B		Cover-glass Cooktop				$ 25.43
29	DE64-01294A		Grille;smh7178,pc,t2.5,w75,l75		Appelez-nous	-
30	DE74-20002A		Tray-cooking				$ 108.28
31	DE97-00368A		Assy-guide Roller			Immediately	$ 35.15
32	DE97-00369A		Assy-wire Rack				$ 102.86
33	DE31-10173A		Motor-drive				$ 54.87
34	DE64-00754A		Panel-outer (blk)				$ 15.82
35	DE92-90508A		Assy-holder Nut			Immediately	$ 17.58
36	555555		Assy-hood Damper   (Replaces: DE92-90242A)				$ 151.94
37	DE72-40022A		Damper-main			Immediately	$ 12.07
38	DE71-60051A		Cover-damper				$ 23.29
39	DE97-00363A		Assy-mounting Plate				$ 22.41
40	DE97-00496A		Assy-grille;smh7178,-,-,-		Appelez-nous	-
41	DE61-00527A		Spring Etc-louver;jvm-2070,hsw				$ 16.82
42	DE61-00129A		Hinge-grille(l)				$ 16.82
43	DE61-00128A		Hinge-grille(r)				$ 16.82
44	DE97-00497A		Assy-cover Grille;smh7178,chas		Appelez-nous	-
45	DE61-00150A		Bracket-barrier Gr				$ 17.58
46	DE61-00177A		Hinge-grille(m)				$ 17.58
47	DE6401296A		Chassis-grille		Appelez-nous	-
48	DE61-00672A		Bracket-cover Grille		Appelez-nous	-
49	3405-001050		Switch-micro				$ 27.34
50	3405-001051		Switch-micro		Appelez-nous	-
51	DE72-00145A		Cam-louver				$ 13.33
52	DE97-00181A		Assy-cam Louver;jvm-1860,assem		Appelez-nous	-
53	DE61-00118A		Bracket-cam Plate		Appelez-nous	-
54	DE31-10154C		Motor-drive				$ 56.08

    View Diagram in Separate Window       Print Part List
