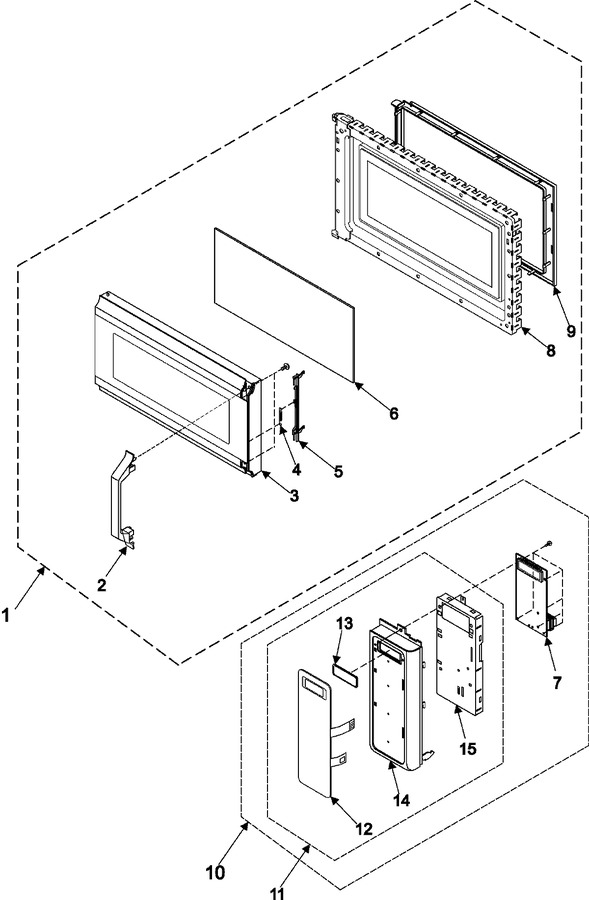

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-01118A | Assy Door;smh7178,blk,premium |
|
$ 211.34 | |||||
| 2 | DE64-01293A | Handle-door;smh7178,al,-,w28.3 |
|
- | |||||
| 3 | DE64-01295A | Door-a;smh7178,pc,t2.5,l619,w3 |
|
$ 133.34 | |||||
| 4 | 555555 | Spring-es (Replaces: 6107-001175) |
|
$ 151.94 | |||||
| 5 | DE64-00760A | Key-door |
|
$ 19.94 | |||||
| 6 | DE64-01292A | Screen-door(b);smh7178,temp-gl |
|
- | |||||
| 7 | YRASSOTR203 | Assy Pcb Parts |
|
- | |||||
| 8 | DE94-00882B | Assy Door-e(coating) |
|
$ 118.11 | |||||
| 9 | DE64-00759A | Door-c |
|
$ 26.60 | |||||
| 10 | DE94-01120A | Assy Control-box |
|
- | |||||
| 11 | DE94-01119A | Assy Control-panel |
|
- | |||||
| 12 | DE34-00205A | Switch Membrane;smh7178,-,129. |
|
- | |||||
| 13 | DE64-00766B | Window-display;4150,san,t2.0,w |
|
$ 13.33 | |||||
| 14 | Y00000000 | See Note Control Panel Currently Unavailable Must Order Item No.11 Assy Control-panel |
|
- | |||||
| 15 | DE97-00498A | Assy-bracket C/panel;smh7178,c |
|
- |
