SELECT A DIAGRAM

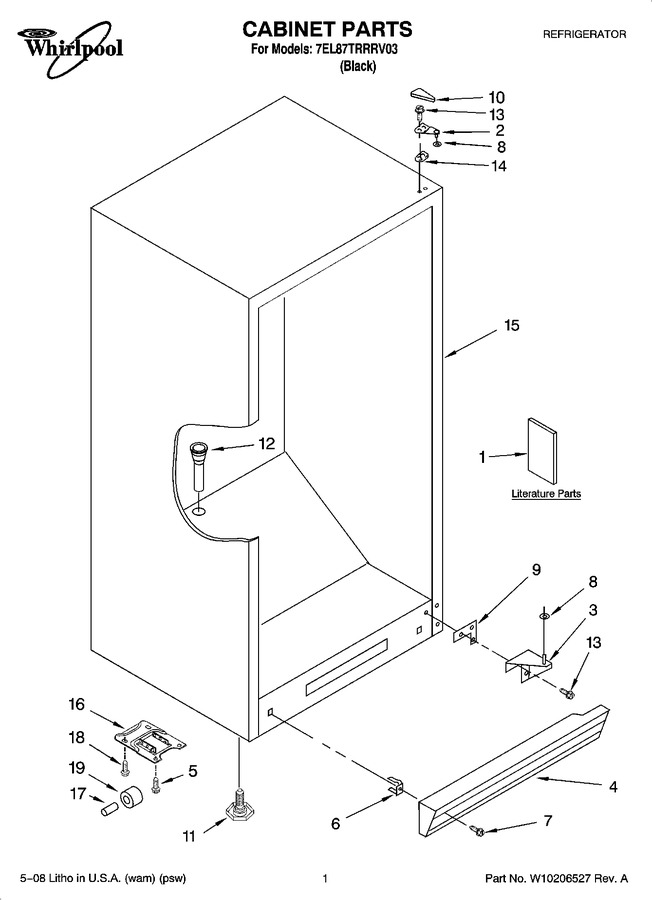

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10206525		Owners Manual		Appelez-nous	-
1	W10206526		Energy Guide/tag		Appelez-nous	-
2	8210251		Top Hinge (black)				$ 137.10
3	8210235		Bottom Hinge (black)		Appelez-nous	-
4	8210294		Grille (includes 6 & 7) (black)				$ 82.87
5	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.00
8	W10851331		Washer   (Replaces: 4390520)				$ 9.51
9	4390489		Shim, Bottom				$ 6.26
10	4390763		Hinge Cover (black)				$ 31.92
11	W11117769		Leg, Leveler   (Replaces: 4390866)			Immediately	$ 16.61
12	W10164544		Grommet, Drain		Appelez-nous	-
13	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
14	4390489		Shim, Hinge				$ 6.26
16	8210265		Bracket, Roller		Appelez-nous	-
17	4390755		Axle				$ 13.86
18	8210266		Screw		Appelez-nous	-
19	3-60315-001		Roller, Front   (Replaces: 4390754)				$ 28.19

    View Diagram in Separate Window       Print Part List
