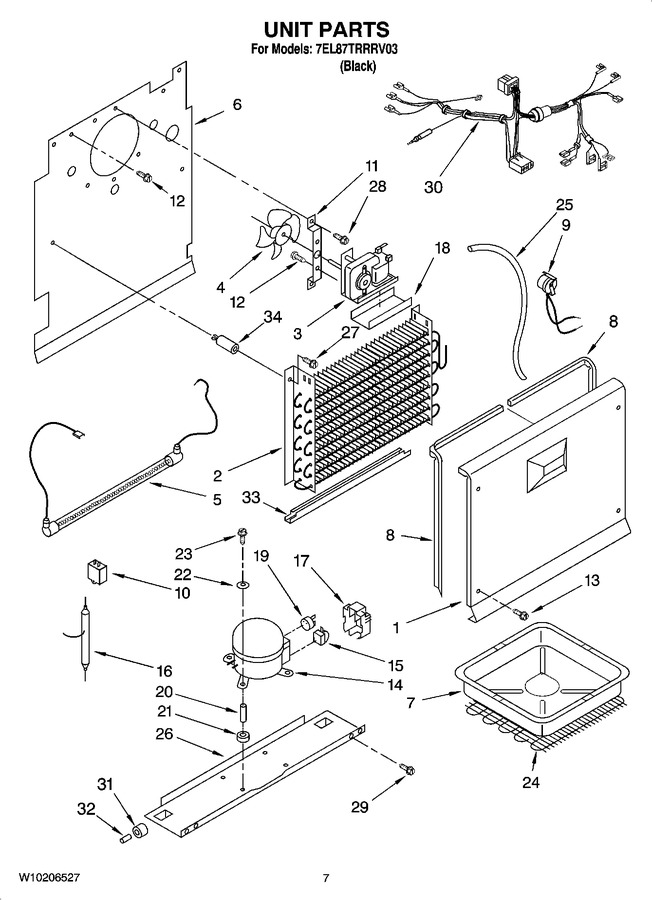

04 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390662 | Cover, Evaporator |
|
$ 147.35 | |||||
| 2 | 4390782 | Evaporator |
|
- | |||||
| 3 | 4357004 | Fan Motor |
|
- | |||||
| 4 | WPW10445742 | Fan Blade (Replaces: 4356920) |
|
Immediately | $ 9.05 | ||||
| 5 | W11175809 | Heater, Defrost (Replaces: W10179594) |
|
Immediately | $ 157.81 | ||||
| 6 | 4357123 | Plate, Evaporator Mount |
|
- | |||||
| 7 | W10164623 | Drain Pan |
|
- | |||||
| 8 | 4390663 | Gasket, Evaporator Cover (right) |
|
$ 215.10 | |||||
| 8 | 4390664 | Gasket, Evaporator Cover (left) |
|
$ 80.20 | |||||
| 9 | WP1-81801-001 | Bi-metal Defrost (Replaces: 4390783) |
|
Immediately | $ 111.32 | ||||
| 10 | 8210239 | Capacitor |
|
$ 125.31 | |||||
| 11 | 2-80028-101 | Bracket, Motor (Replaces: 4357129) |
|
$ 84.58 | |||||
| 12 | 60001022 | Screw, Motor (Replaces: 4356943) |
|
$ 56.93 | |||||
| 13 | WP3-24004-109 | Screw (Replaces: 4357110) |
|
$ 7.25 | |||||
| 14 | W10237328 | Compressor (includes Items 15,16,17 & 19) (Replaces: 8210240) |
|
$ 532.85 | |||||
| 15 | 4356738 | Relay |
|
$ 53.17 | |||||
| 16 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 17 | 8210242 | Cover |
|
- | |||||
| 18 | 4357128 | Shield, Motor |
|
$ 97.89 | |||||
| 19 | 8210241 | Overload |
|
$ 88.68 | |||||
| 20 | 4356846 | Sleeve |
|
$ 12.86 | |||||
| 21 | 4356335 | Grommet, Compressor |
|
- | |||||
| 22 | 4356847 | Washer |
|
- | |||||
| 23 | 8210220 | Screw, Compressor |
|
- | |||||
| 24 | W10451951 | Condenser (Replaces: 8210248) |
|
$ 257.77 | |||||
| 25 | WP4357245 | Heat, Exchanger (Replaces: 4357245) |
|
Immediately | $ 243.64 | ||||
| 26 | 8210202 | Compressor Pan |
|
- | |||||
| 27 | WP489491 | Screw (Replaces: 4390821) |
|
$ 6.26 | |||||
| 28 | WP3400094 | Screw (Replaces: 4356970) |
|
$ 7.14 | |||||
| 29 | WP3-24838-048 | Screw (Replaces: 4357277) |
|
$ 7.00 | |||||
| 30 | W10202715 | Harness, Unit |
|
- | |||||
| 31 | 3-60315-001 | Roller (Replaces: 4390754) |
|
$ 28.19 | |||||
| 32 | 4390755 | Axle |
|
$ 13.86 | |||||
| 33 | W10164624 | Shield, Heater |
|
- | |||||
| 34 | 4357020 | Grommet |
|
- | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 156.56 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 208.40 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | ||||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 |
