SELECT A DIAGRAM

01 - Control Panel-upper (cm46b-9p)

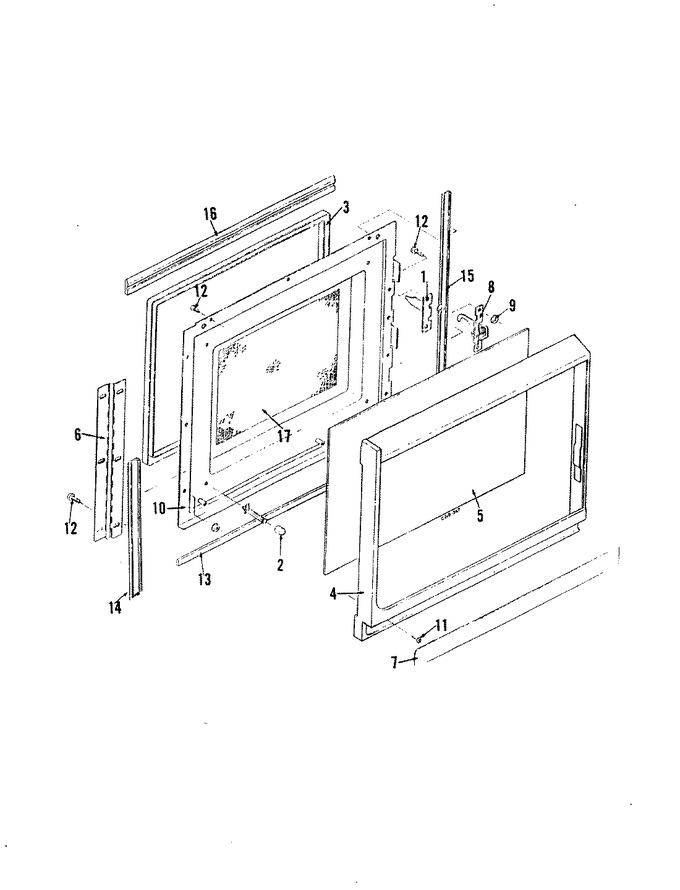

02 - Door


03 - Door-upper (cm46b-9p)


04 - Interlock Switches-upper (cm46b-9p)


05 - Internal Controls-upper (cm46b-9p)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y02030116		Bracket, Door Latch		Appelez-nous	-
1	Y02030117		Activator, Monitor		Appelez-nous	-
1	02010047		Bracket, Door Trim		Appelez-nous	-
2	02230011		Bumper		Appelez-nous	-
3	02120137		Handle, Extrusion		Appelez-nous	-
3	Y02100080		Choke, Filler (wht)		Appelez-nous	-
4	02100108		Frame, Door		Appelez-nous	-
5	Y02220082		Glass, Door		Appelez-nous	-
6	Y02200017		Hinge, Door		Appelez-nous	-
7	02100091		Insert, Trim Door		Appelez-nous	-
8	02190048		Door Latch		Appelez-nous	-
9	M0282005		Nut, Hex(must Order Locally)   (Replaces: Y03050041)				$ 7.07
10	02060221		Inner Door		Appelez-nous	-
11	Y03010118		Screw		Appelez-nous	-
12	Y03020071		Screw & Washer (hi Lo)		Appelez-nous	-
13	02120114		Seal, Bottom		Appelez-nous	-
14	Y02120121		Seal, Hinge Side		Appelez-nous	-
15	Y02120122		Seal, Latch Side		Appelez-nous	-
16	02310129		Tape, Buffer		Appelez-nous	-
16	Y03180023		Spring, Door Latch		Appelez-nous	-
16	02120129		Seal, Top		Appelez-nous	-
16	Y03120069		Spacer, Door Window		Appelez-nous	-
16	Y02100135		Bumper		Appelez-nous	-
17	Y02220073		Window, Polyester		Appelez-nous	-
17	Y05080027		+ Dble Tape 36``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
