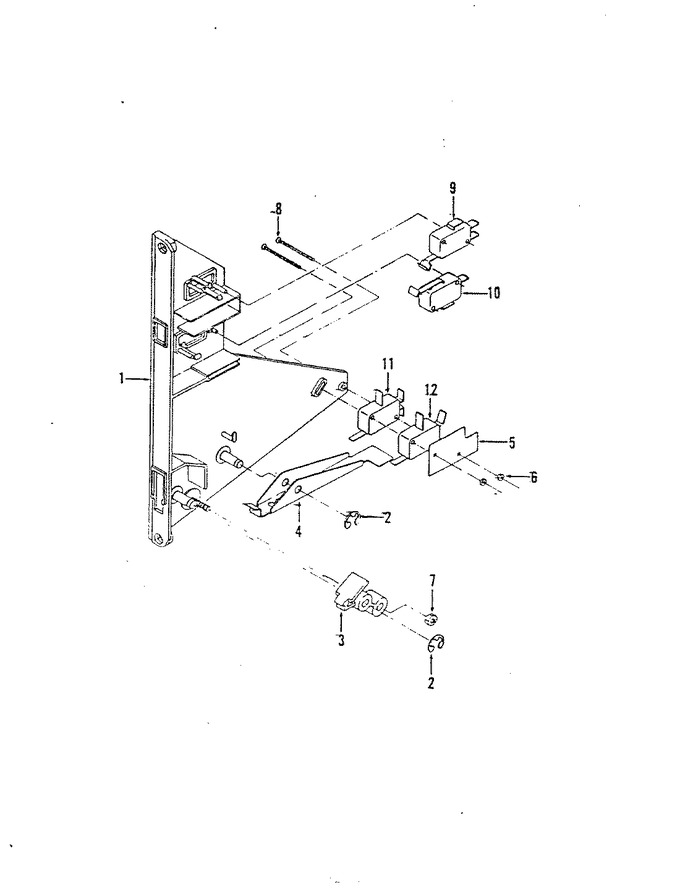

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 02030115 | Bracket Inter | 01 |
|
- | ||||
| 2 | 03110040 | Clip, Retainer | 01 |
|
- | ||||
| 3 | 02190049 | Latch, Door Interlock | 01 |
|
- | ||||
| 4 | 02180010 | Switch Lever | 01 |
|
- | ||||
| 5 | 01100032 | Switch Insulator | 01 |
|
- | ||||
| 6 | Y03050001 | Nut | 01 |
|
- | ||||
| 7 | 03050003 | Nut | 01 |
|
- | ||||
| 8 | 03010117 | Screw | 01 |
|
- | ||||
| 9 | Y01140038 | Switch, Secondary Interlock | 01 |
|
- | ||||
| 10 | Y01140030 | Switch, Monitor Interlock | 01 |
|
- | ||||
| 11 | Y01140040 | Switch | 01 |
|
- | ||||
| 12 | 01140037 | Switch | 01 |
|
- |
