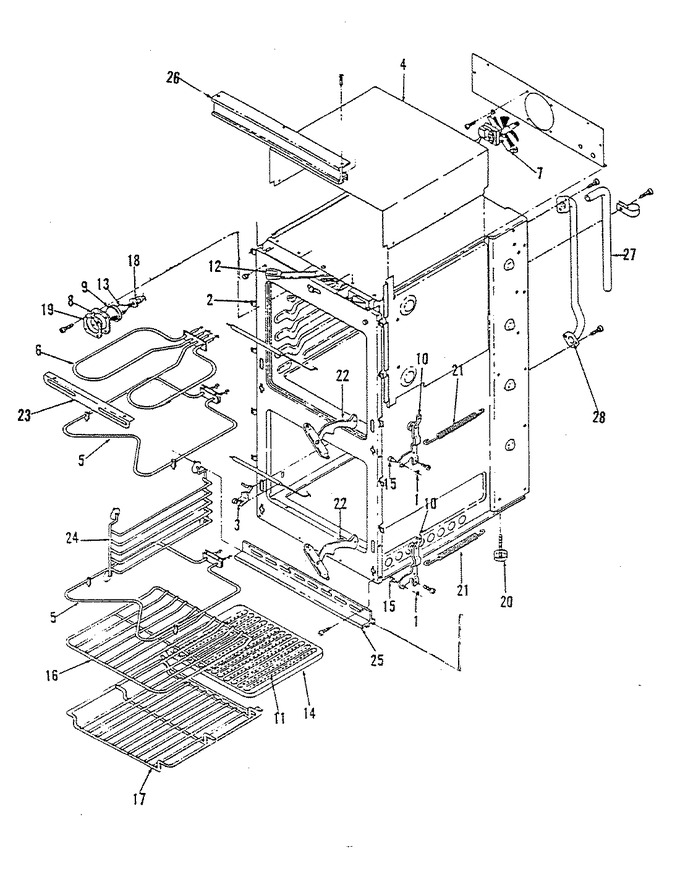

01 - Body
02 - Control Panel
03 - Door
04 - Door Lock Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1867271 | Block | 01 |
|
- | ||||
| 1 | 1828254 | Support | 01 |
|
- | ||||
| 1 | 1867212 | Block | 01 |
|
- | ||||
| 1 | 1013214 | Ring, Snap | 01 |
|
- | ||||
| 1 | 4006H045 | Box, Vent | 01 |
|
- | ||||
| 2 | 1141227 | Clip | 01 |
|
- | ||||
| 3 | WP7112P004-60 | Clip (Replaces: 1141233) | 01 |
|
Immediately | $ 11.07 | |||
| 4 | 4005F148 | Cover, Box | 01 |
|
- | ||||
| 4 | 4005F150 | Cover, Wire | 01 |
|
- | ||||
| 5 | WPY04000066 | Unit, Bake (Replaces: 1938370) | 01 |
|
Immediately | $ 70.53 | |||
| 6 | WPY04000048 | Unit, Broil (Replaces: 1938371) | 01 |
|
$ 160.58 | ||||
| 7 | 1313274 | Gasket, Broil Element | 01 |
|
- | ||||
| 7 | 7427P004-60 | Fan, Assembly | 01 |
|
- | ||||
| 8 | 1313273 | Gasket | 01 |
|
- | ||||
| 8 | 1313260 | Gasket, Lampguard Retainer | 01 |
|
- | ||||
| 8 | 1313259 | Gasket, Lampguard | 01 |
|
- | ||||
| 9 | 1327784 | Glass, Lightguard | 01 |
|
- | ||||
| 10 | 3418F026-34 | Hinge, Oven Door (lt) | 01 |
|
- | ||||
| 10 | 3418F025-34 | Hinge, Oven Door (rt) | 01 |
|
- | ||||
| 11 | 0507243 | Insert, Broil Pan | 01 |
|
- | ||||
| 12 | 1460205 | Lever, Door Lock | 01 |
|
- | ||||
| 13 | 40A15 | Light, Oven (Replaces: 1077202) | 01 |
|
Immediately | $ 1.98 | |||
| 13 | 1555260 | Snap Nut | 01 |
|
- | ||||
| 14 | 4396923 | Pan, Broil (Replaces: Y0663215) | 01 |
|
Immediately | $ 52.04 | |||
| 15 | 1584204 | Pin, Oven Door Hinge | 01 |
|
- | ||||
| 15 | 1636243 | Rack | 01 |
|
- | ||||
| 16 | 1636242 | Rack | 01 |
|
- | ||||
| 17 | 1636246 | Rack | 01 |
|
- | ||||
| 18 | 1669201 | Resistor | 01 |
|
- | ||||
| 18 | 1657202 | Receptacle, Oven Light | 01 |
|
- | ||||
| 19 | 1986331 | Cabinet Mtng Screw | 01 |
|
- | ||||
| 19 | 0749216 | Retainer | 01 |
|
- | ||||
| 20 | 1986388 | Screw, Leveling Leg | 01 |
|
- | ||||
| 21 | 1790314 | Spring, Oven Dr. | 01 |
|
- | ||||
| 21 | 1790213 | Spring | 01 |
|
- | ||||
| 22 | Y0112238 | Stop, Door | 01 |
|
- | ||||
| 23 | Y0862419 | Support, Broil Element | 01 |
|
- | ||||
| 23 | 0862449 | Support | 01 |
|
- | ||||
| 24 | 1860210 | Terminal | 01 |
|
- | ||||
| 24 | 1832410 | Switch, Fan | 01 |
|
- | ||||
| 24 | 1828261 | Support | 01 |
|
- | ||||
| 25 | 7706P157-60 | Extrusion, Frt Frame | 01 |
|
- | ||||
| 26 | 7706P141-60 | Trim, Vent | 01 |
|
- | ||||
| 27 | 1930338 | Tube | 01 |
|
- | ||||
| 28 | 1930337 | Tube | 01 |
|
- |
