SELECT A DIAGRAM
01 - Body

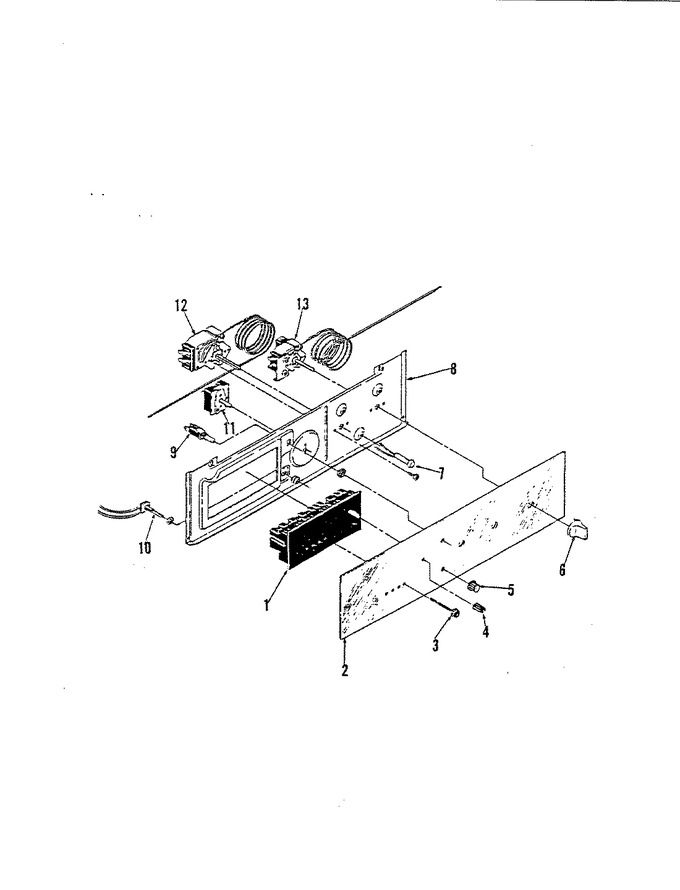

02 - Control Panel
03 - Door
04 - Door Lock Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P047-60 | + Clock | 01 |
|
- | ||||
| 1 | 7706P168-60 | Extrusion, Glass | 01 |
|
- | ||||
| 2 | 7902P128-60 | Glass, Control | 01 |
|
- | ||||
| 3 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 4 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 5 | 1359263 | Knob, Switch | 01 |
|
- | ||||
| 6 | 1362231 | Knob, Selector | 01 |
|
- | ||||
| 7 | 1555236 | Nut | 01 |
|
- | ||||
| 7 | 1406246 | Light, Indicator | 01 |
|
- | ||||
| 8 | 0719288 | Plate, Backing | 01 |
|
- | ||||
| 8 | WP74004005 | Therm Mounting Screw (Replaces: 1986330) | 01 |
|
$ 6.95 | ||||
| 9 | 1832413 | + Switch,light | 01 |
|
- | ||||
| 10 | 1832412 | Switch, Pushbutton | 01 |
|
- | ||||
| 11 | 1832387 | Switch | 01 |
|
- | ||||
| 12 | 7404P026-60 | Thermostat | 01 |
|
- | ||||
| 13 | 7404P027-60 | Thermostat | 01 |
|
- |
