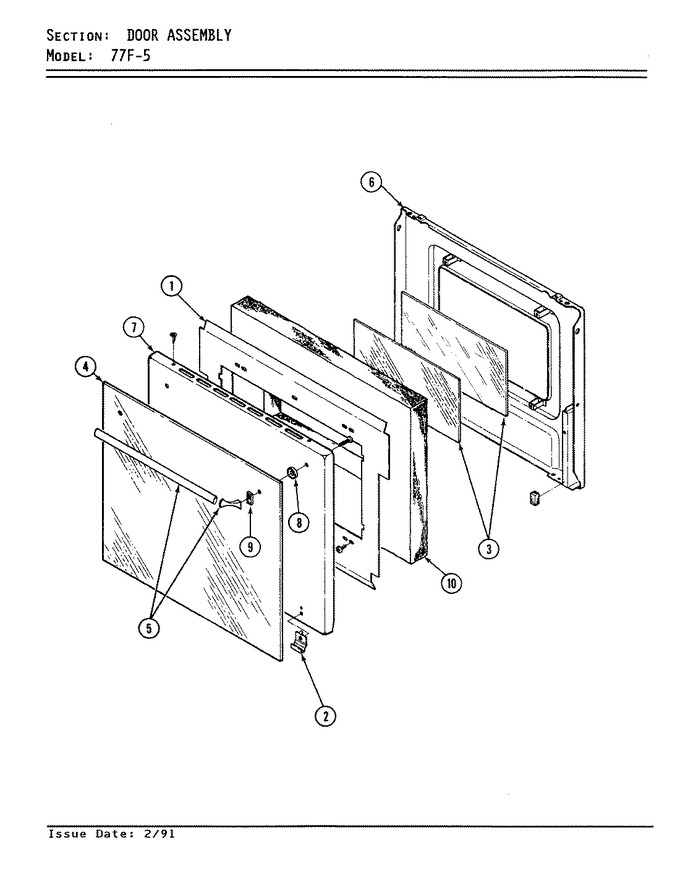

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door - Lower
04 - Door - Upper
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P089-60 | Screw, Door Handle | 01 |
|
- | ||||
| 1 | 3601F103-51 | Baffle, Door | 01 |
|
- | ||||
| 2 | 3819F010-70 | Clip, Glass Retainer (blk) | 01 |
|
- | ||||
| 2 | 3603F013-80 | Frame, Window----na | 01 |
|
- | ||||
| 3 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 4 | 7902P129-60 | Glass, Door | 01 |
|
- | ||||
| 4 | 7902P335-60 | Glass, Outer (blk) | 11 |
|
- | ||||
| 5 | 7701P024-60 | Handle, Door (blk) | 01 |
|
$ 67.19 | ||||
| 6 | 2402W132-15 | Lining Assembly | 02 |
|
- | ||||
| 6 | 2402W132-19 | Lining, Door | 13 |
|
- | ||||
| 6 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 6 | 2402W098-12 | Lining Assy, Ov Dr | 01 |
|
- | ||||
| 7 | 2401F054-70 | Panel, Oven Door | 01 |
|
- | ||||
| 7 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 01 |
|
$ 105.81 | ||||
| 7 | 7212P007-60 | Seal, Door (vertical) | 01 |
|
$ 47.10 | ||||
| 7 | 2401F104-70 | Panel, Door (blk) | 11 |
|
- | ||||
| 7 | 7208P001-60 | Seal, Glass | 01 |
|
- | ||||
| 7 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 8 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 9 | 8010P028-60 | Spacer, Door Handle | 01 |
|
- | ||||
| 10 | 7002P019-60 | Insulation, Door Lower | 01 |
|
- |
